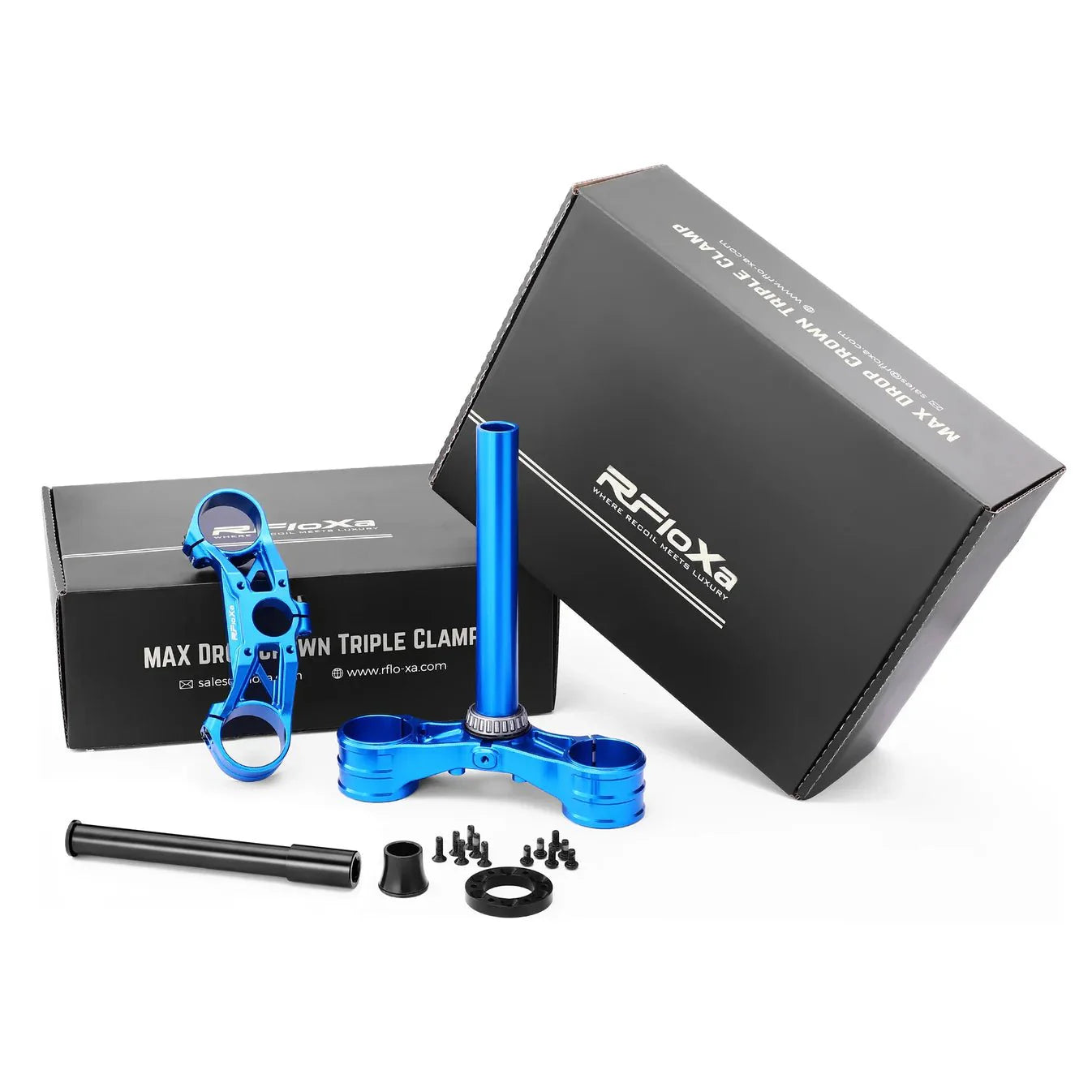

RFloXa Max drop crown triple clamp for Surron and Talaria — main view
RFloXa Max triple clamp — upper crown detail
RFloXa Max triple clamp — lower crown clamping screws
RFloXa Max triple clamp — flange spacer detail

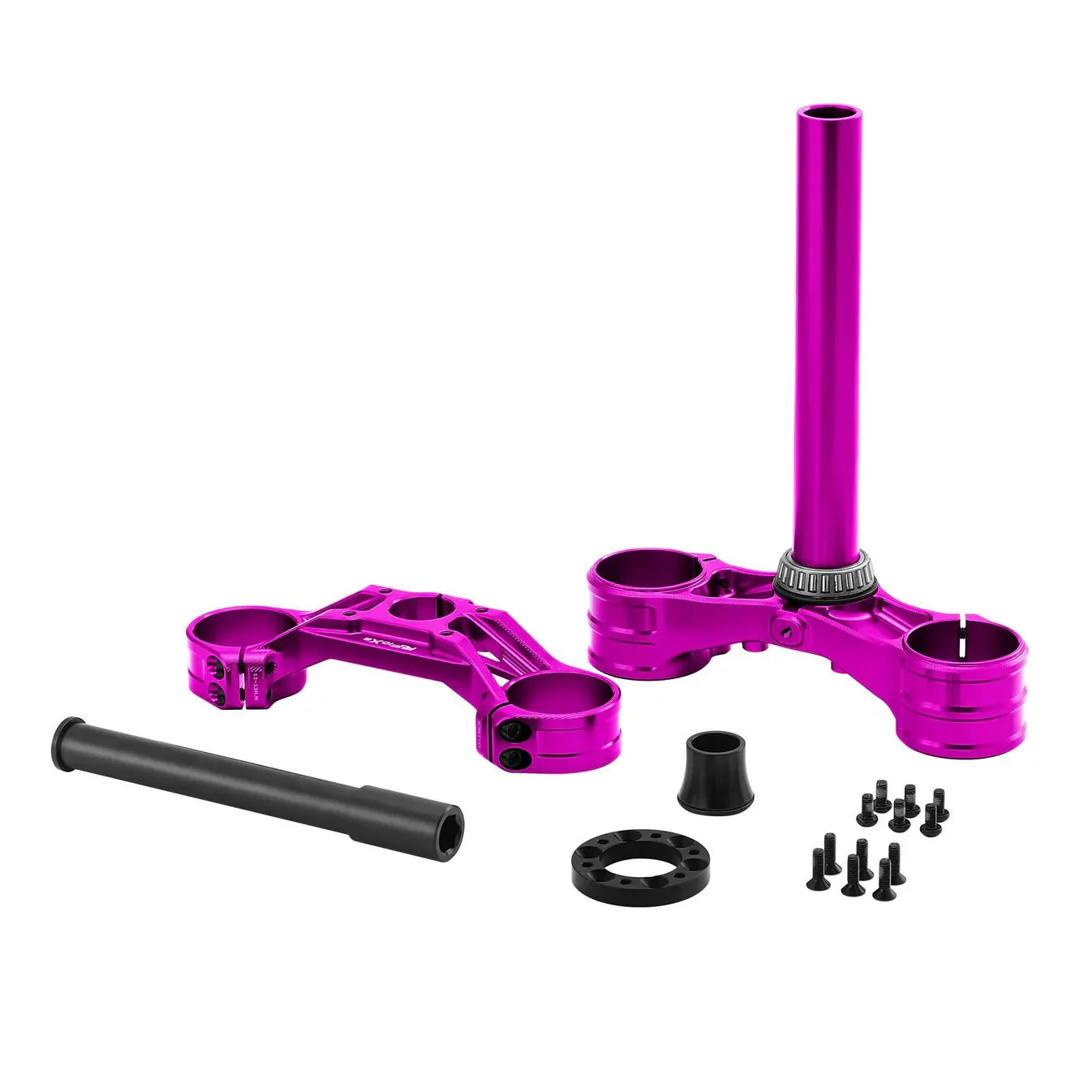

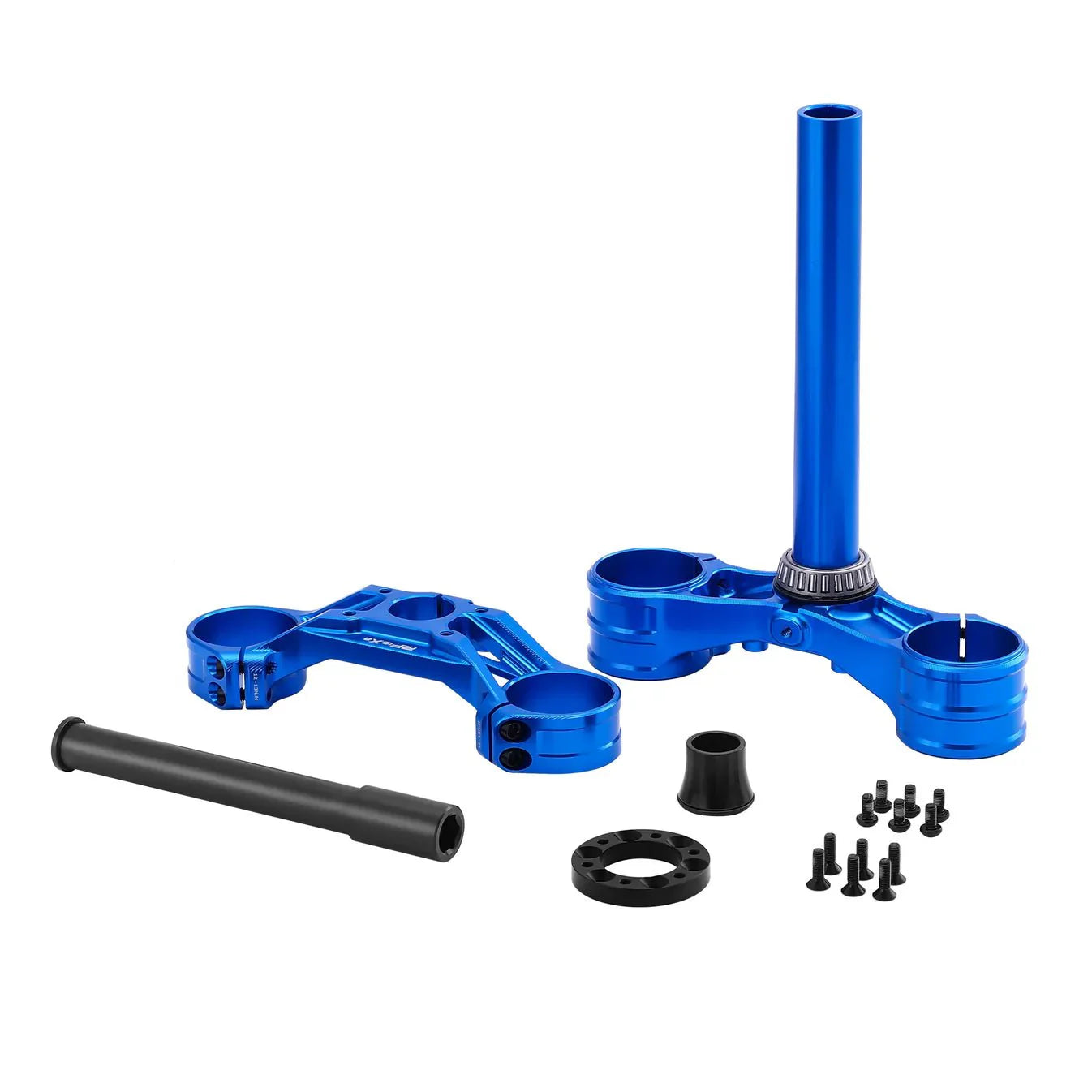

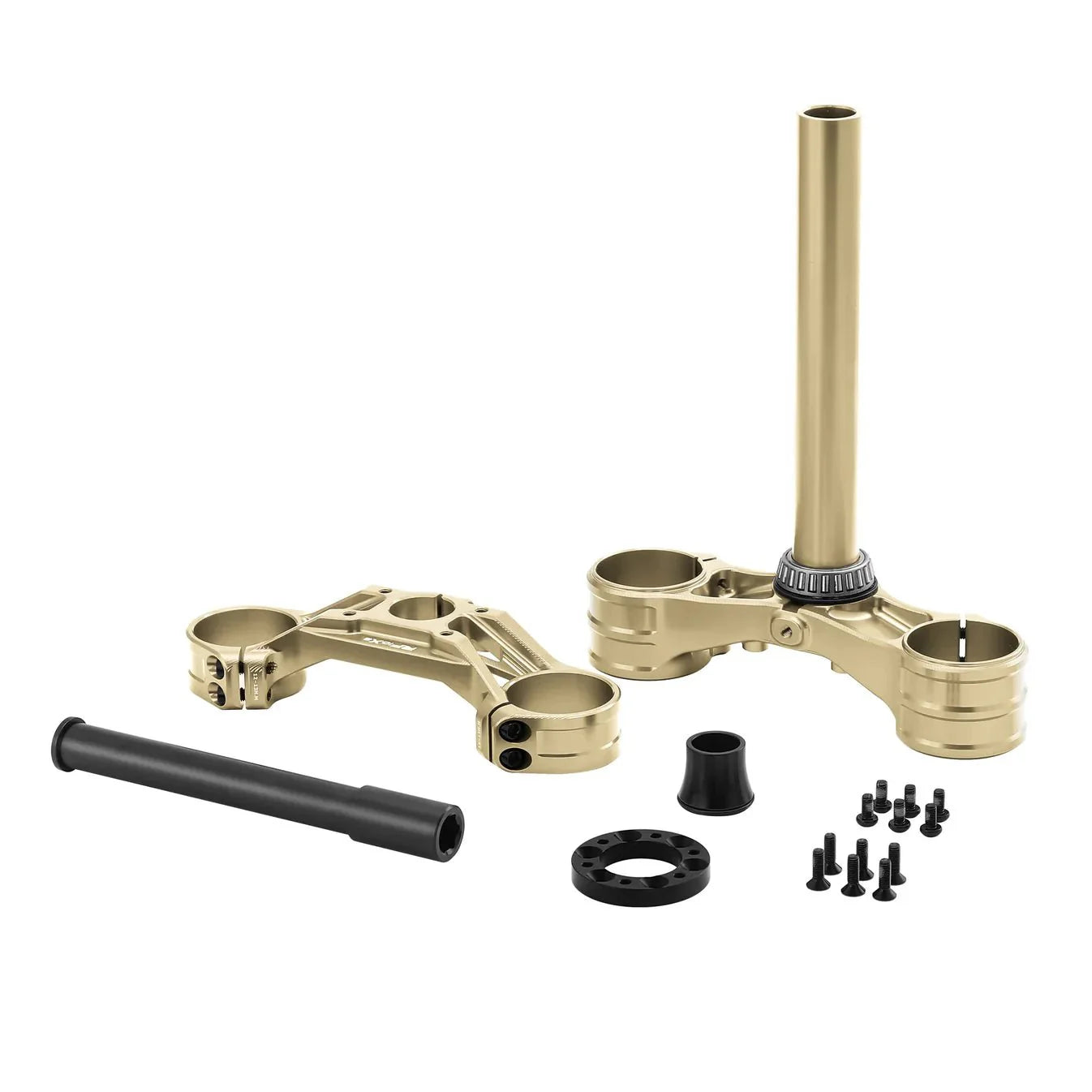

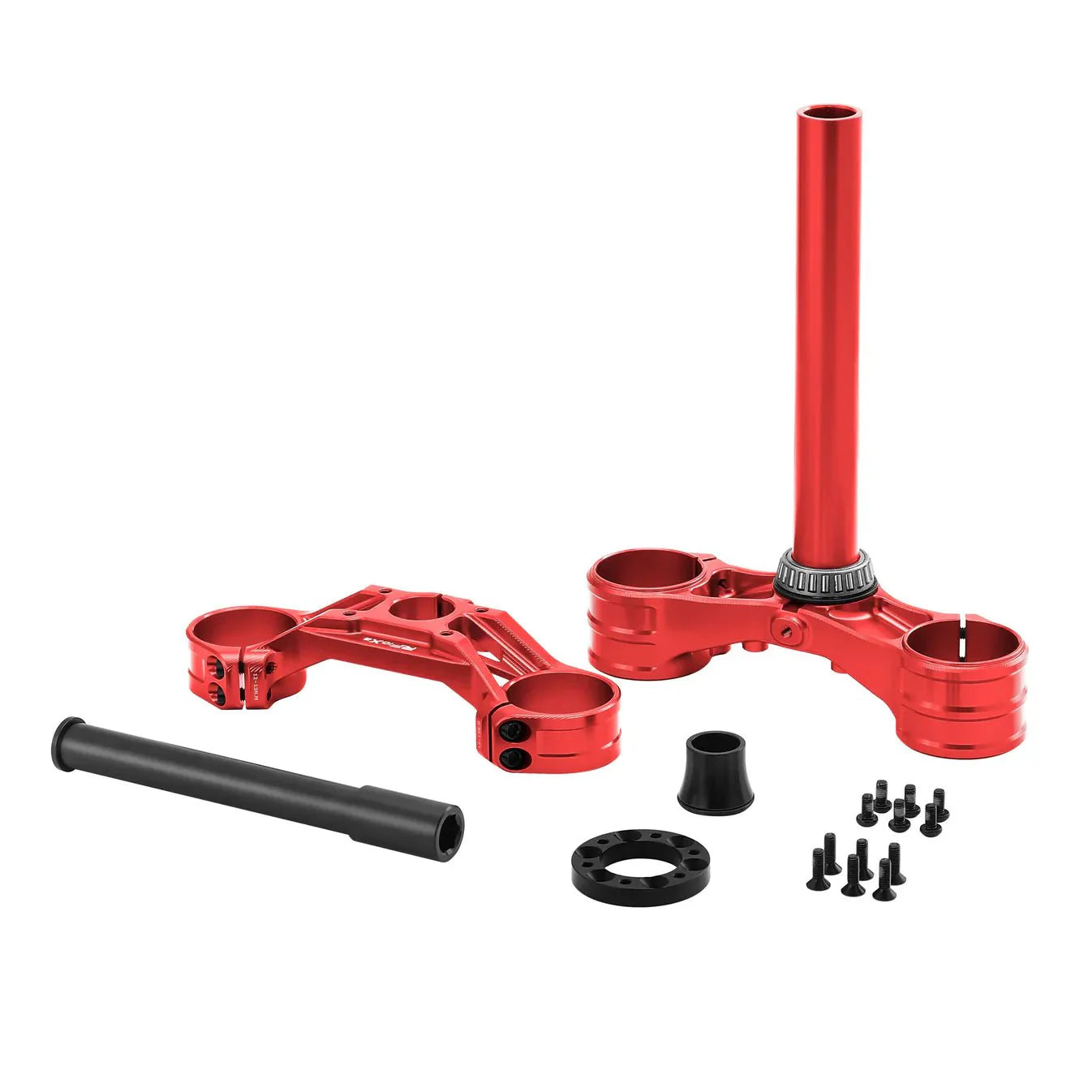

RFloXa Max triple clamp — color options
RFloXa Max triple clamp — installed on fork
Click to open expanded view

RFloXa Max Triple Clamp

$299
Taxes and shipping calculated at checkout

Color: Blue

RFloXa Max drop crown triple clamp for Surron and Talaria — main view
Color: Blue

Stock Notification

Get notified when this product is available again

Product information

The RFLOXA MAX Drop Crown Triple Clamp is a widened clamp solution compatible with FastAce ALX13RC/AHX12RV forks. It maximizes the performance of RFLOXA/FastAce forks — improving tire clearance, correcting steering geometry, and providing enhanced impact resistance.

Features

  • Robust impact resistance: high-strength aluminum billet crowns; dual-row clamping screws on the upper crown, triple-row on the lower for rigidity against bigger hits
  • Lightweight drop crown design: hollow upper crown reduces weight without sacrificing strength; fork tubes can be lowered beyond factory position to adjust riding posture
  • Increased tire clearance: widened 16mm design accommodates tires up to 90mm wide with clearance for fork compression
  • Flange spacer: AL7075 high-strength flange spacer offsets the brake rotor to the correct position with a 12-screw staggered design (6 on spacer, 6 on rotor) for even braking force; compatible with 203mm rotors or direct mount calipers for 220mm rotors, and supports additional brake mounts for non-offset 220mm/240mm setups
  • 17mm drop on the upper crown; 16mm wider than OEM
  • Multiple colors: black, red, blue, gold, and purple

Fitment

  • Talaria Sting MX3 / MX4 / MX5
  • Sur-Ron Light Bee
  • E-Ride Pro
  • Compatible with RFLOXA FCG31RVP/FCG32RCP and FastAce AHX12RV / ALX13RC forks

Note: Clamp data is based on Talaria Sting MX3/MX4, Sur-Ron Light Bee, and E-Ride Pro product data — non-standard or modified front wheel cores will not fit perfectly. Not compatible with Volar or Rippin Moto braking systems (compatible with collet adapter).
