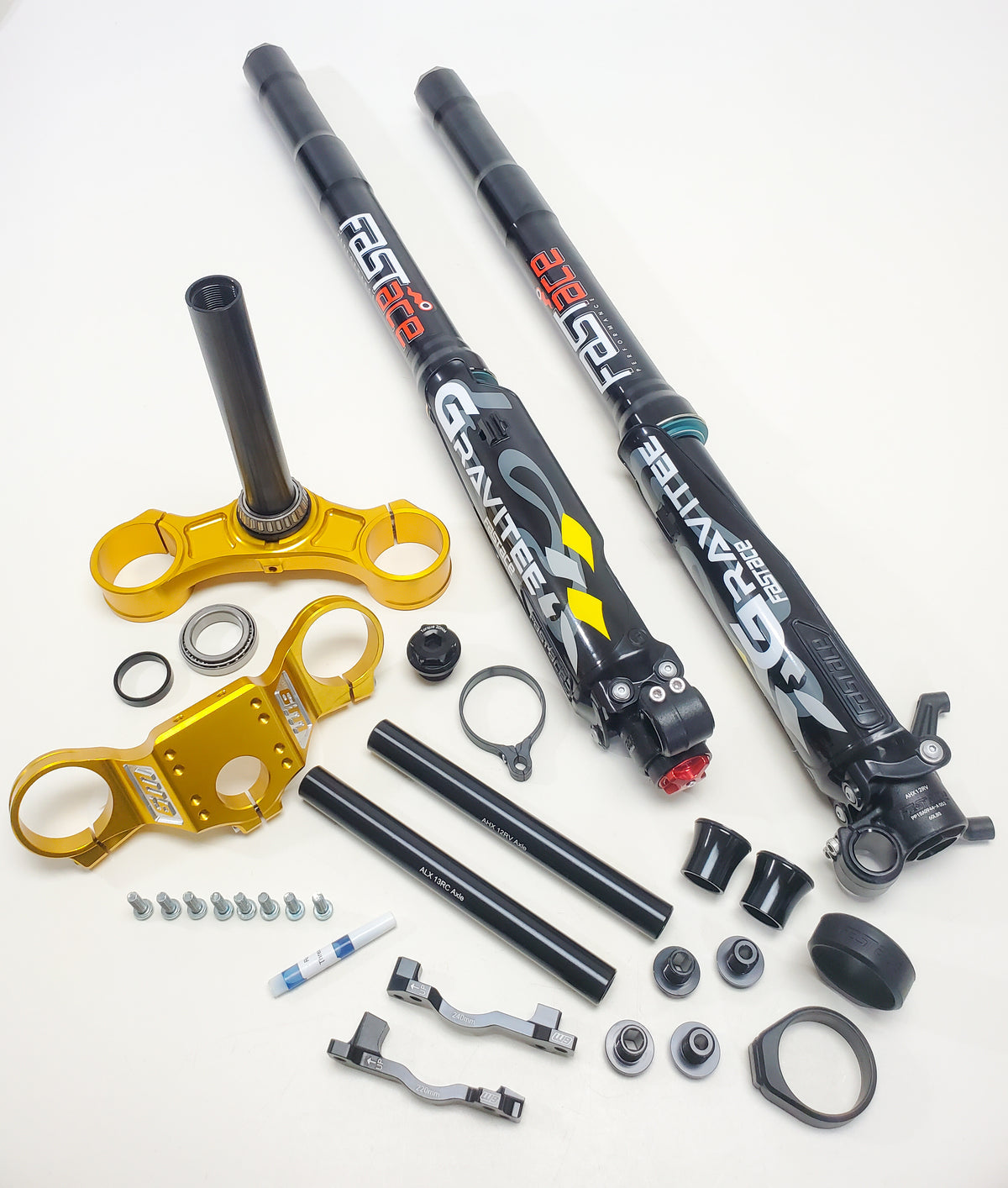

Warp 9 drop crown triple clamps included in FastAce bundle
Warp 9 FastAce suspension bundle compression adjuster detail
Warp 9 FastAce suspension bundle installed on Surron Light Bee

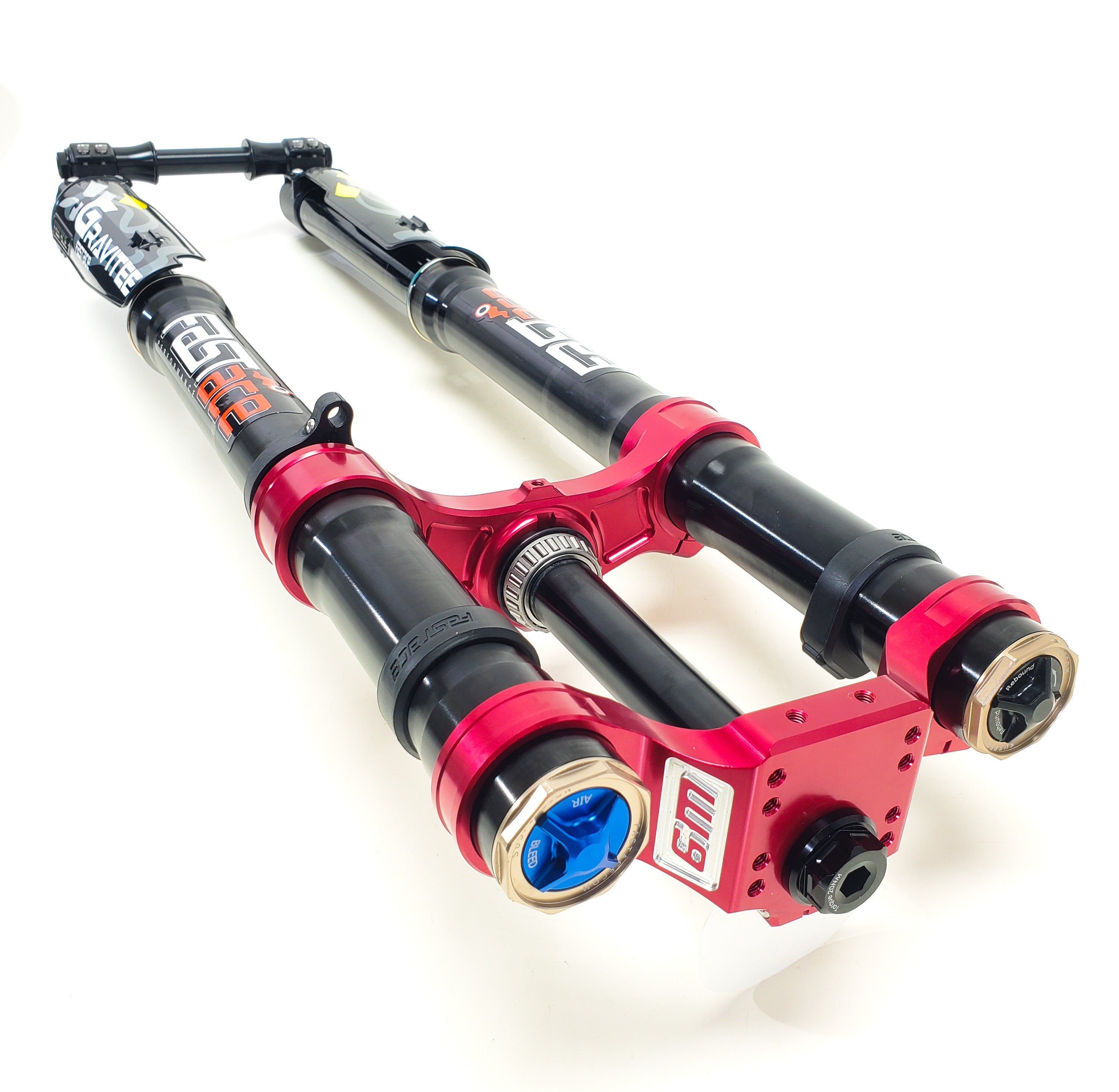

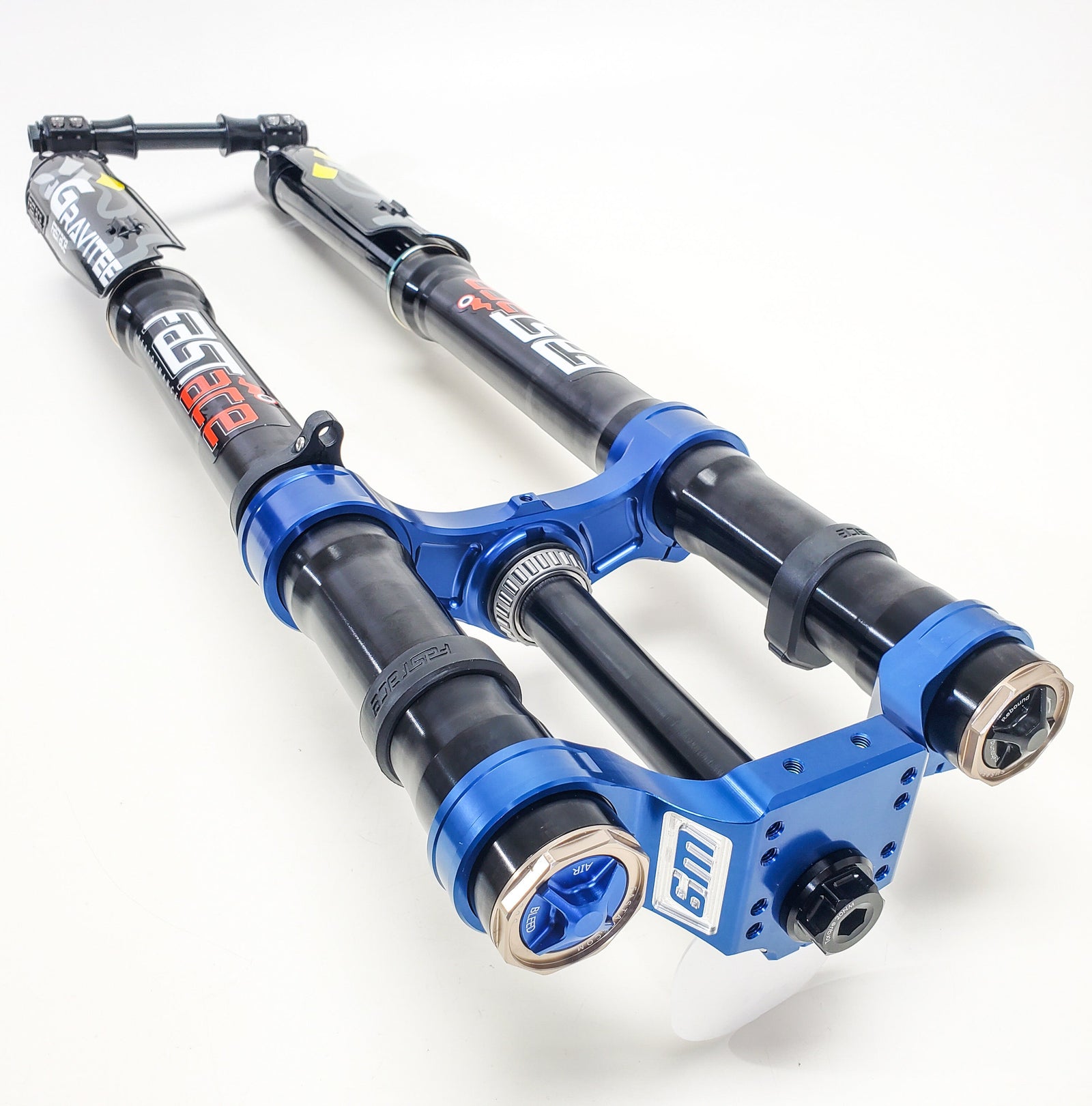

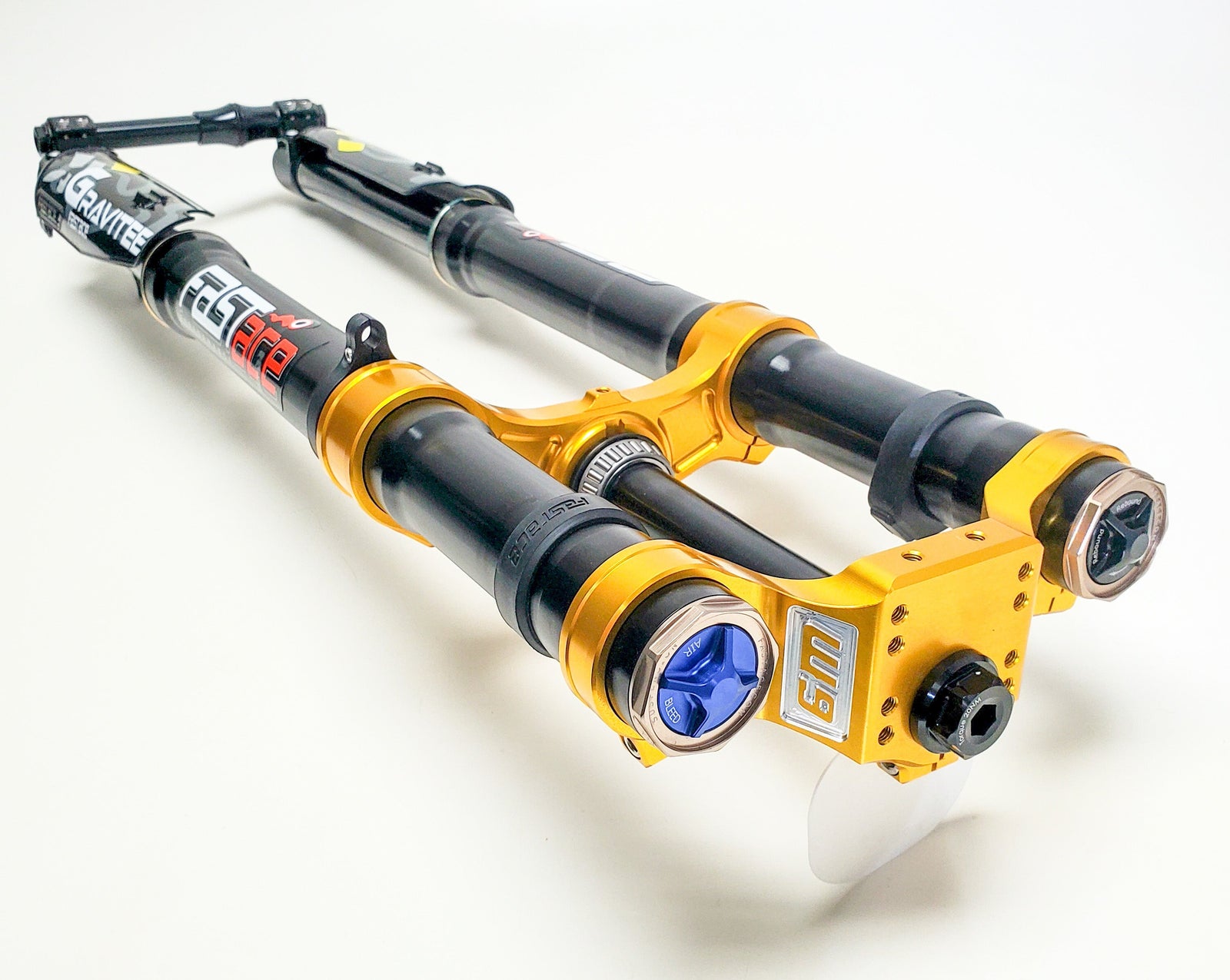

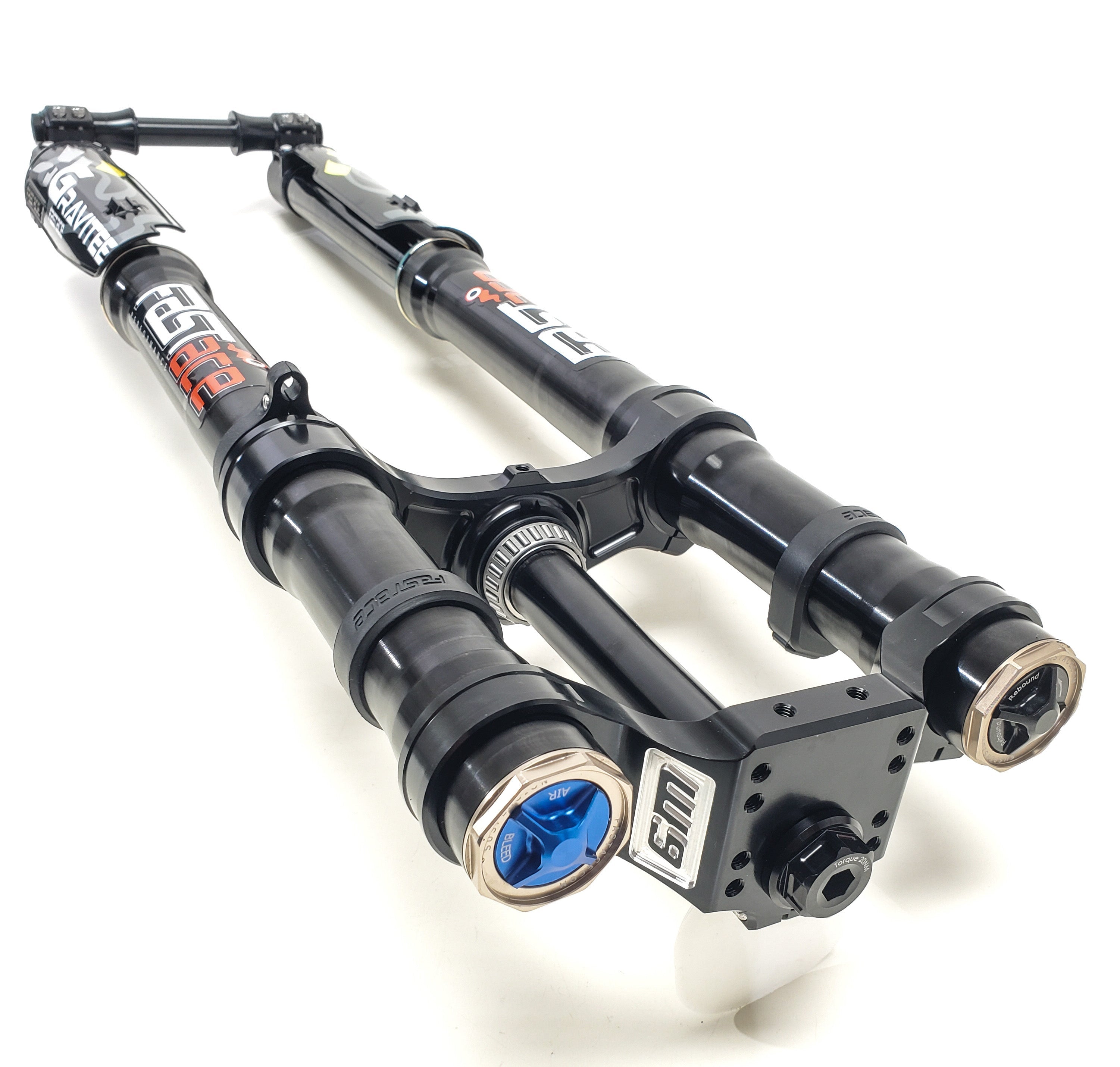

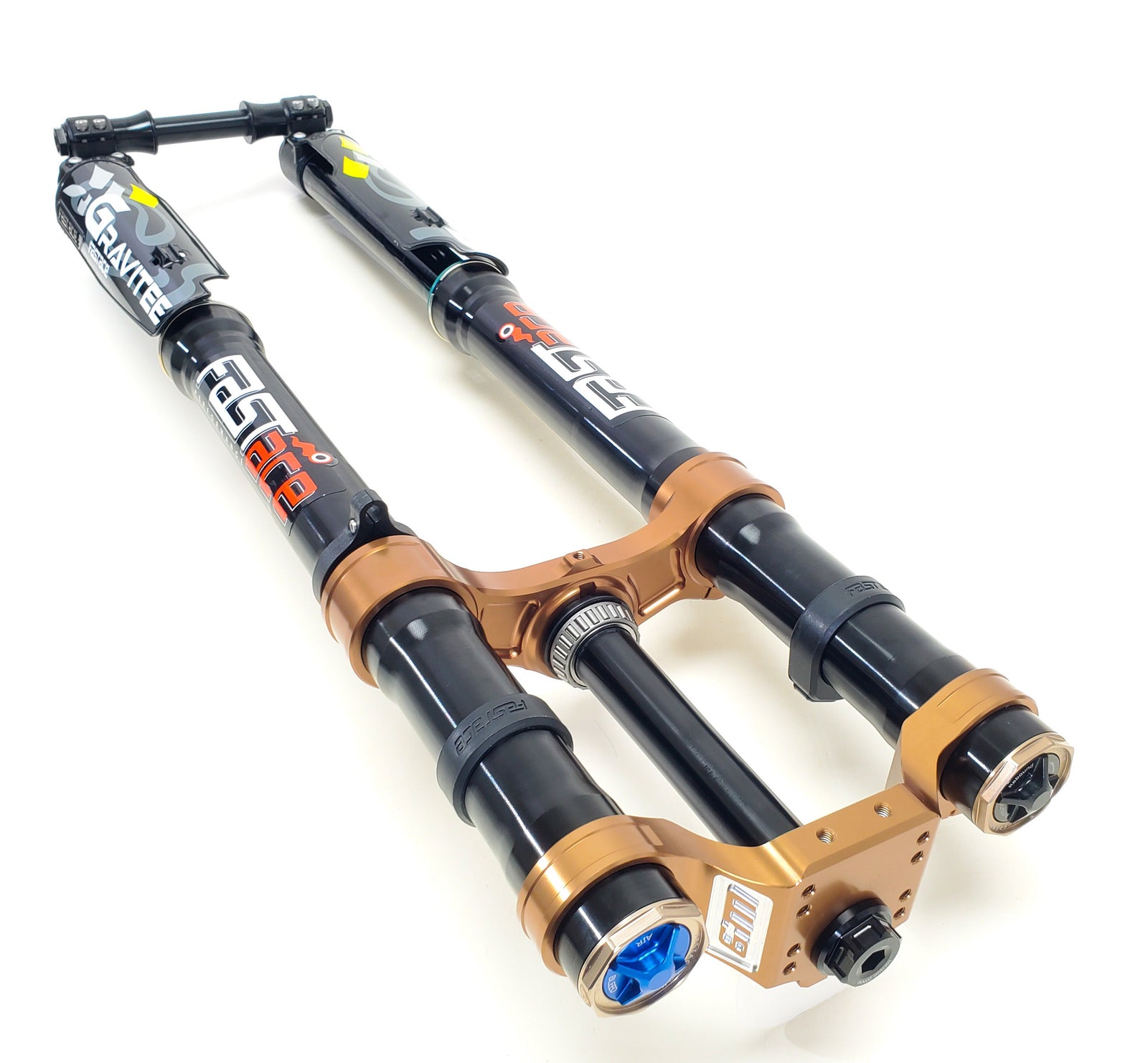

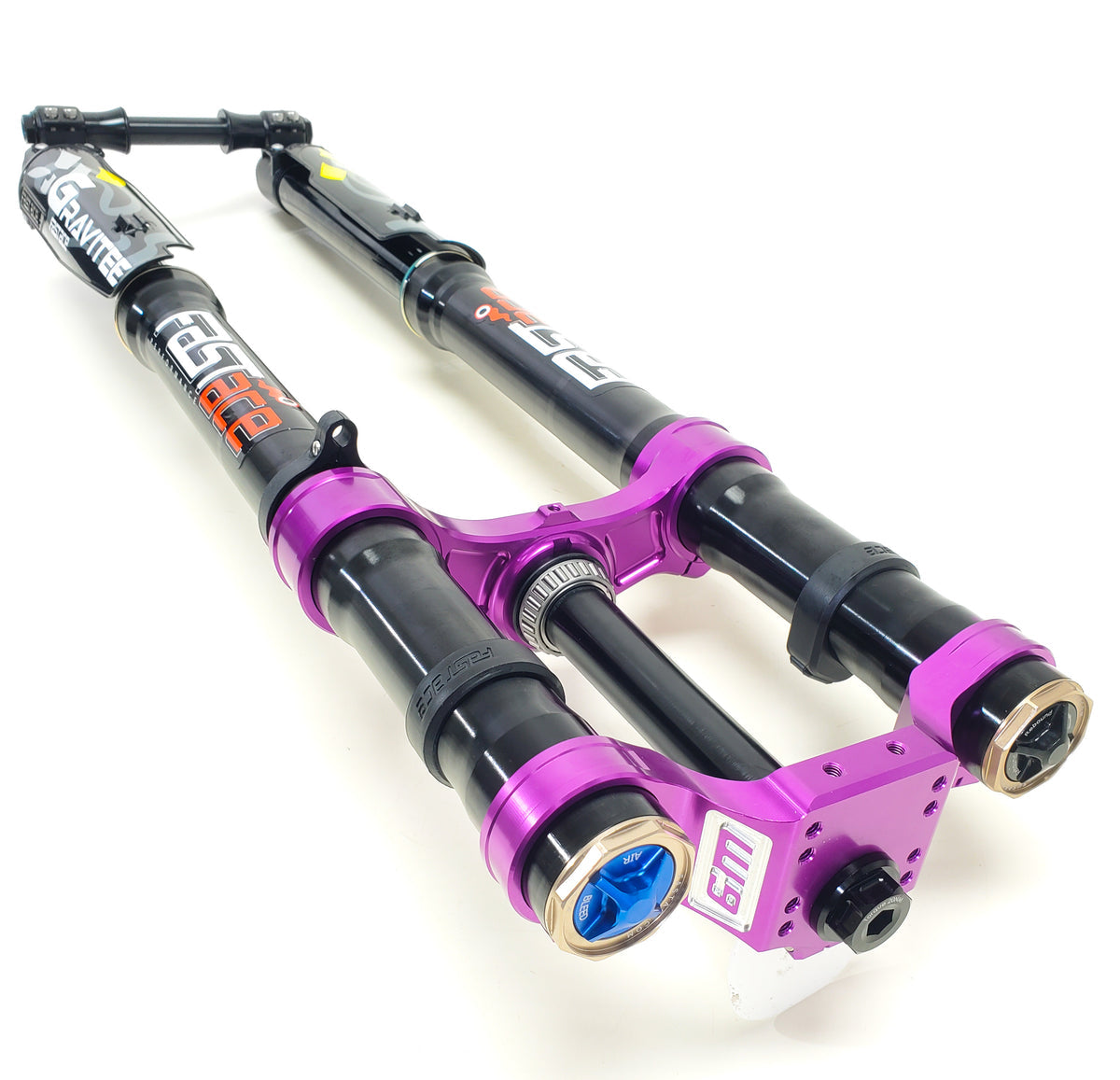

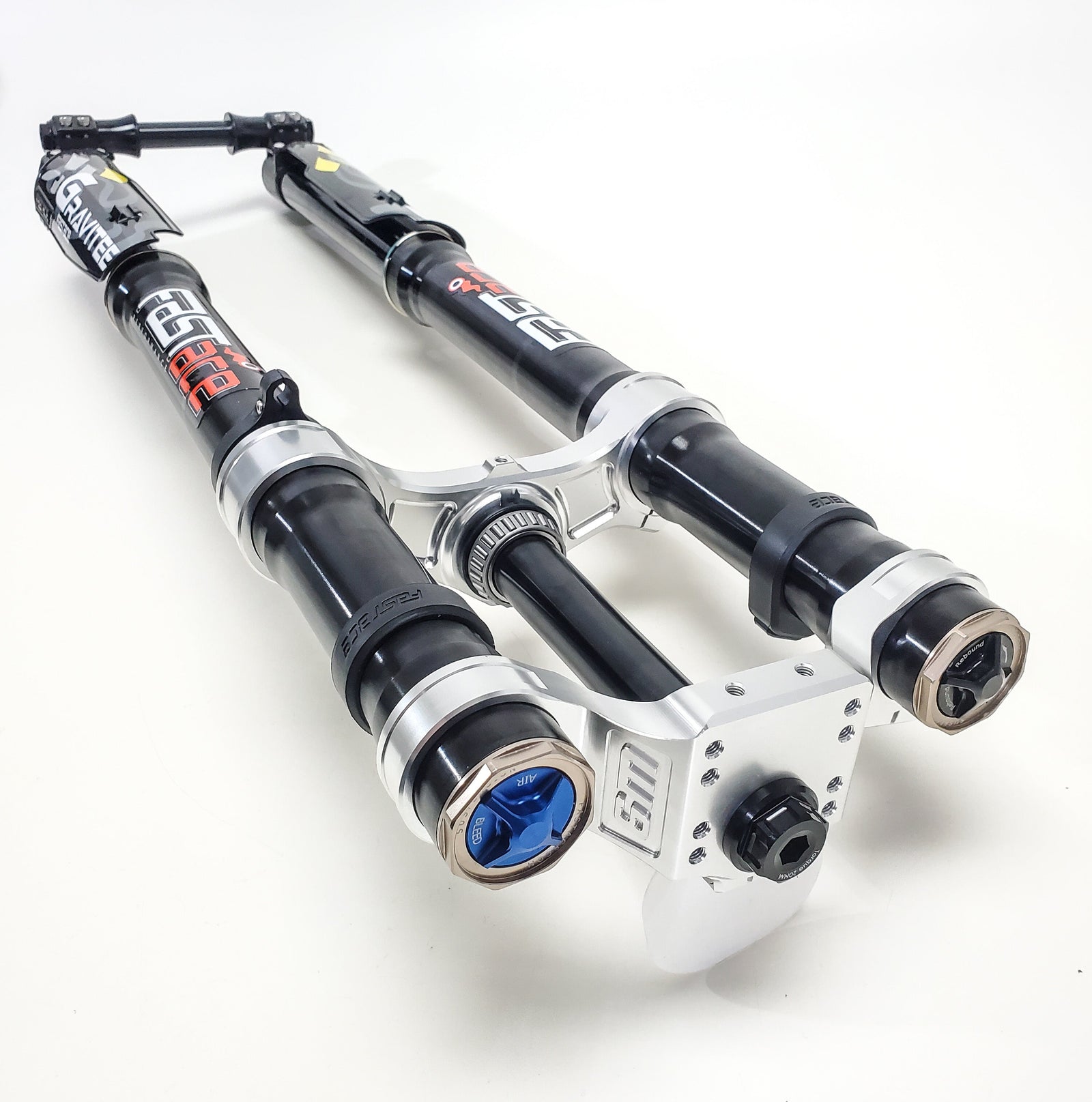

Warp 9 FastAce suspension bundle clamp color options
Warp 9 FastAce suspension bundle laser etched ride height marks
Click to open expanded view

Warp 9 FastAce Suspension Bundle

$899
Taxes and shipping calculated at checkout

Color: Blue

Product information

Warp 9 teamed up with FastAce to take the Gravitee AHX12RV fork to the next level — sprung with a 60lb spring, custom valving, and 5wt Motul synthetic oil, dialed for aggressive riders from 175 to 220 lbs.

Features

  • SKF seals and wipers offer the least stiction possible
  • Custom laser etching to keep track of your favorite ride height
  • 37mm lower stanchions — some of the largest in the industry, designed for serious punishment
  • 18-step high and low speed compression damping
  • Brake posts designed for 203mm rotors — larger rotors need caliper adapters

Includes Warp 9 Drop Crown Triple Clamps

  • Built for strength: 7075-T6 billet aluminum with exceptional strength-to-weight ratio
  • Increased tire clearance: 20mm wider design fits 90-width tires, Supermoto wheels, and wider setups
  • Drop crown design: lowers fork tubes beyond stock, correcting steering geometry and restoring stock head angles — no steer lock needed
  • Adjustable bar mounts: up to 10mm forward/backward adjustment
  • Threaded top nut: motorcycle-style top nut keeps headset bearings tight
  • Multiple colors: Black, Red, Blue, Magnesium, Gold, and Purple
  • Brake brackets included: offset caliper brackets for 220mm and 240mm rotors
  • Optional brackets: 250mm bracket, Talaria MX5 bracket, and E-Ride Pro 3.0/SR brackets planned for spring 2025 — 250mm bracket available here
  • V2 updates: decorative machined reliefs on the clamp faces (weight reduction) plus headlight mounting holes on the front of the clamps

Fitment

  • Talaria Sting MX3 / MX4
  • Sur-Ron Light Bee
  • E-Ride Pro
  • 79Bike Falcon
  • FastAce forks with 39mm stanchions, 48mm lower clamp area, 46mm upper clamp area

Note: Not compatible with Volar, MX5, or Rippin Moto brake systems. Will not fit OEM Talaria factory forks. Does NOT work with 230mm Prickly / Ultra brake kit.
