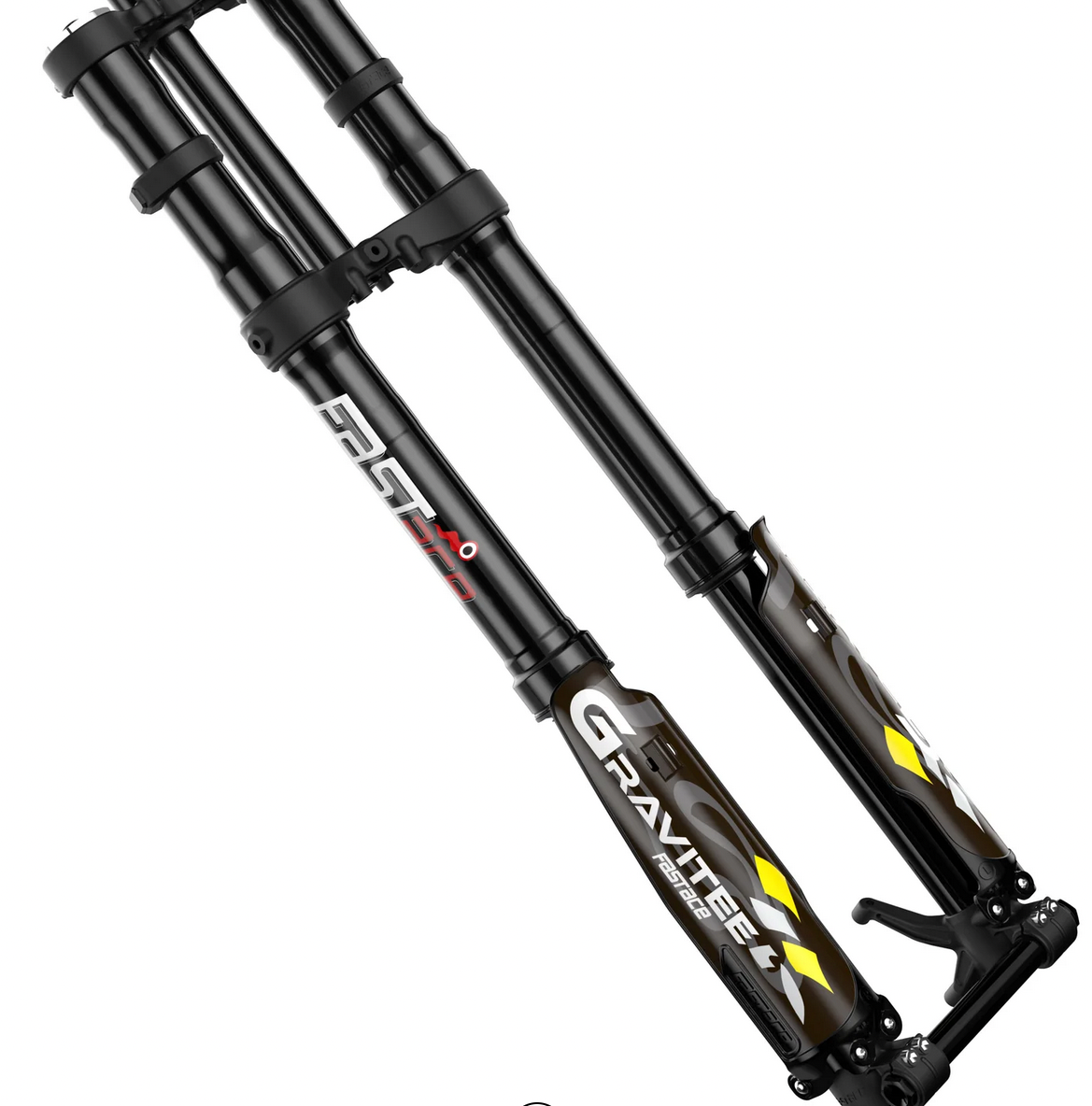

FastAce AHX12RV Gravitee Front Fork

This is FastAce's newest offering for Surron Light Bee, Talaria Sting MX3/MX4/XXX, E Ride Pro SS, and all other MTB fork based eMoto bikes. Often called the "3.0", it's bigger and beefier than its predecessor, includes black lower/stanchion tubes, and now has 18 clicks of both high and low-speed compression damping adjustment. It features HD springs up to 60lb and updated dampening valving which provides a huge upgrade over previous generations and the OEM forks.

Spring Rate Recommendation

• 50 lb: Ideal under 175 lbs, soft for 176-200, too soft for 200+
• 60 lb: Stiff under 175, race for 176-200, ideal for 200+
• 38-60 lb Progressive: Stiff ramp up under 175, plush for 176-200, excess sag for 200+

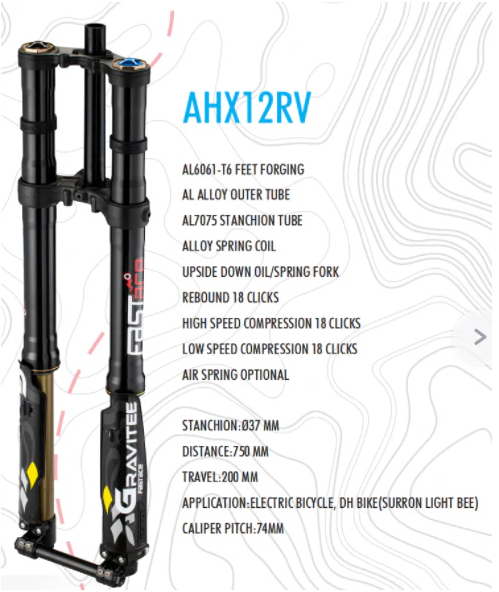

Features

• Legs Material: 2000 Series Aluminium
• Leg Diameter: 37mm
• Axle: 20*10*M14*P1.5*170L
• Steerer: 1-1/8" Straight
• Spring: coil spring
• Adjustments: Rebound, HS and LS Compression
• 18 steps High Speed and 18 steps Low Speed Compression Damping
• 18 steps Rebound Damping
• Crown: Forged
• Brake Post Mount: 203mm (compatible with up to 223mm rotors)
• Max Tire Width: 67mm
• Ride Height: 22.9in
• Travel: 200mm

For heavier riders and big air dirt jumpers.
