Fardriver Bluetooth dongle for Tuttio Soleil 01 controller tuning
Click to open expanded view

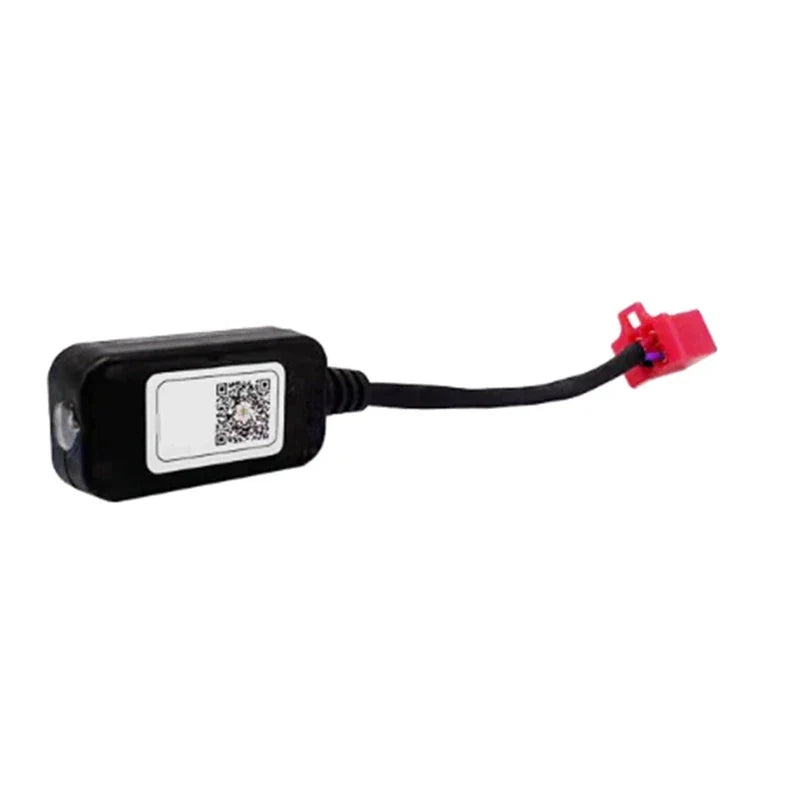

Fardriver Bluetooth Dongle

$25
Taxes and shipping calculated at checkout

Product information

Wirelessly tune your Tuttio Soleil 01 using the Fardriver app. Adjust throttle, regen braking, speed modes, and more — directly from your phone or tablet. The dongle plugs straight into the white connector on the controller harness, making setup quick and simple.

Features

  • Wireless Bluetooth tuning via the Fardriver app (iOS and Android)
  • Throttle response — adjust sensitivity and acceleration feel
  • Regen braking — set how much braking force feeds power back into the battery
  • Speed modes & limits — tune acceleration, ECO mode, or maximum speed
  • Battery and motor limits — set correct voltage, current, and protection values

Setup Guide

1. Download the app: iOS — search Fardriver on the App Store. Android — search “Nanjing Fardriver” on Google Play.

2. Plug in the dongle: Locate the white connector on your Soleil 01 controller harness, insert the dongle with pins aligned, and push in until secure — do not force it. A loose connection may cause pairing issues. When the bike is powered on, the dongle receives power (some models show a blinking LED).

3. Enable Bluetooth: Settings > Bluetooth ON. Unpair unused devices to reduce conflicts.

4. Power on the bike: Switch on the ignition so the controller and dongle are active; check for a light on the dongle (if equipped).

5. Connect the app: Open the Fardriver app, tap Search/Connect Device, select the controller (usually listed as Fardriver or similar), tap Bind/Connect and wait for confirmation.

6. Run Auto-Learn (motor calibration): Lift the bike so the rear wheel spins freely, select Auto Learn (or Motor Learn) — the motor will rotate forward and backward. Wait for the success message before riding.

7. Save & test: Tap Save/Write Settings, power cycle the bike, then test throttle and regen in a safe area.

Fitment

  • Tuttio Soleil 01 (Fardriver controller harness, white connector)

Note: This dongle is only compatible with Fardriver controllers. Adjust settings carefully — incorrect values may affect performance or damage components.
