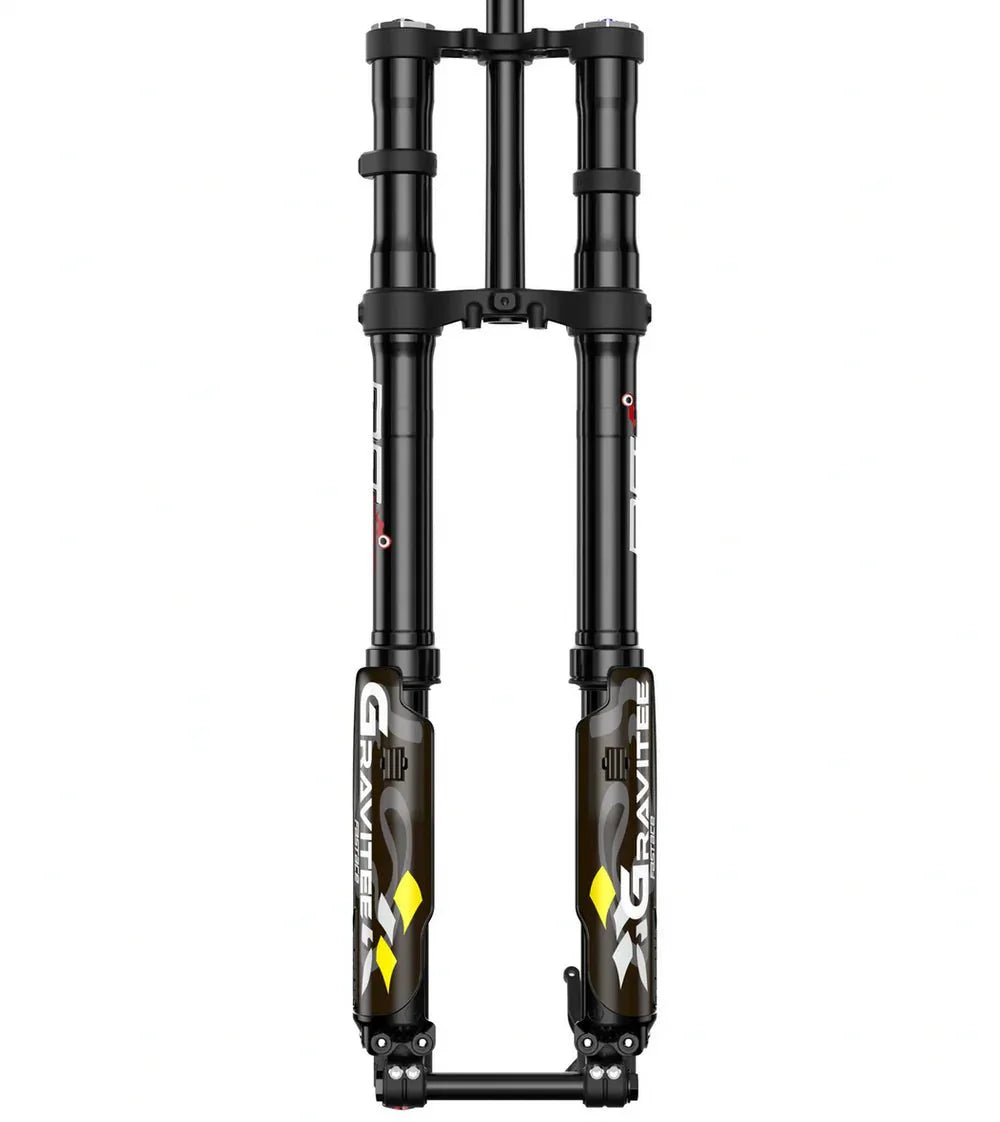

FastAce AHX12RV Gravitee fork for Surron, Talaria, E-Ride Pro — full fork
FastAce AHX12RV Gravitee fork — compression adjuster detail
FastAce AHX12RV Gravitee fork — forged crown detail
FastAce AHX12RV Gravitee fork — lower leg and brake mount
FastAce AHX12RV Gravitee fork — axle detail
FastAce AHX12RV Gravitee fork — installed on e-moto

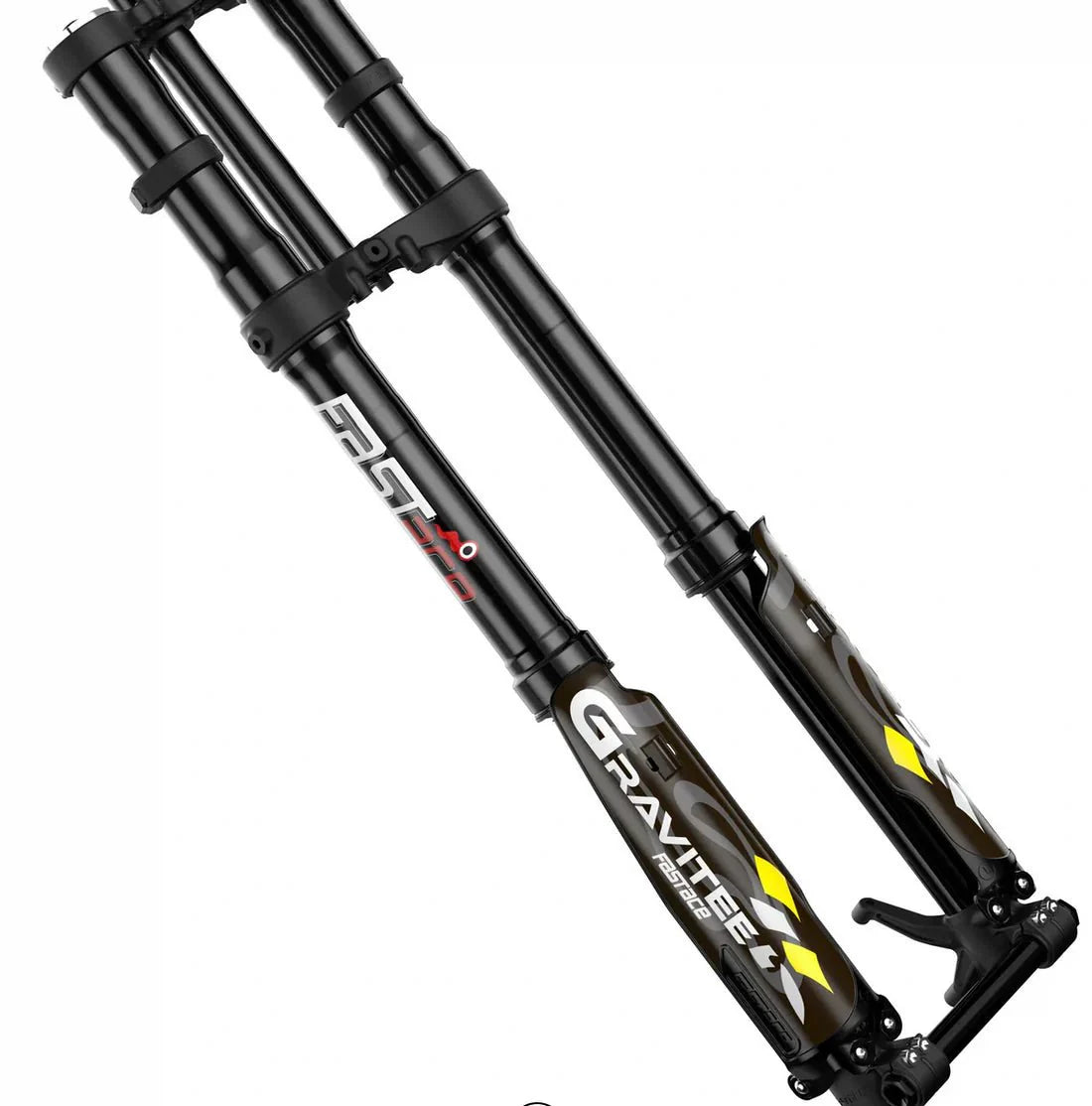

FastAce AHX12RV Gravitee fork — side profile
Click to open expanded view

AHX12RV FastAce Gravitee Fork for E-Moto

$699.99
Taxes and shipping calculated at checkout

Spring Rate:

Black 60lb

Product information

New FastAce AHX12RV 60lb forks. Ships same day from Chicago.

This is FastAce's newest fork for E-Moto — also referred to as the "Gravitee" fork. Bigger and beefier than its predecessor, it fits light e-motos like the Surron LBX, Talaria MX3/MX4/XXX, E Ride Pro SS 2.0, Ventus, 79Bike, and many similar bikes, with 18 clicks of both high- and low-speed compression damping adjustment.

Features

  • Legs material: 2000 series aluminum
  • Leg diameter: 37mm
  • Axle: 20*10*M14*P1.5*170L
  • Steerer: 1-1/8" straight
  • Spring: coil spring
  • Adjustments: rebound, high-speed and low-speed compression
  • 18 steps high-speed and 18 steps low-speed compression damping
  • 18 steps rebound damping
  • Crown: forged
  • Brake post mount: 203mm (compatible with up to 223mm rotors)
  • Max tire width: 67mm
  • Ride height: 22.9 in
  • Travel: 200mm

Weight scale (approximate):

  • 38lb–60lb progressive spring: 176–265 lb rider weight (realistically 150–225 lb)
  • 60lb spring: 220–265 lb rider weight (realistically 190–225 lb)

Fitment

  • Talaria MX3 / MX4 / XXX
  • Surron LBX, LBS, L1E
  • Segway X-260 / X-160
  • E-Ride Pro S / SS 1.0 / 2.0
  • Rawrr Mantis (requires new upper tapered bearing, sold separately)
  • 79Bike Falcon M
  • Ventus One
  • RFN Apollo
  • Rerode R1
