Tuttio Soleil 01 Rear Mudguard

Keep your bike clean and protected with the Tuttio Soleil 01 rear mudguard. It shields you from mud and debris while safeguarding your rear shock from dirt accumulation and potential rusting.

Features

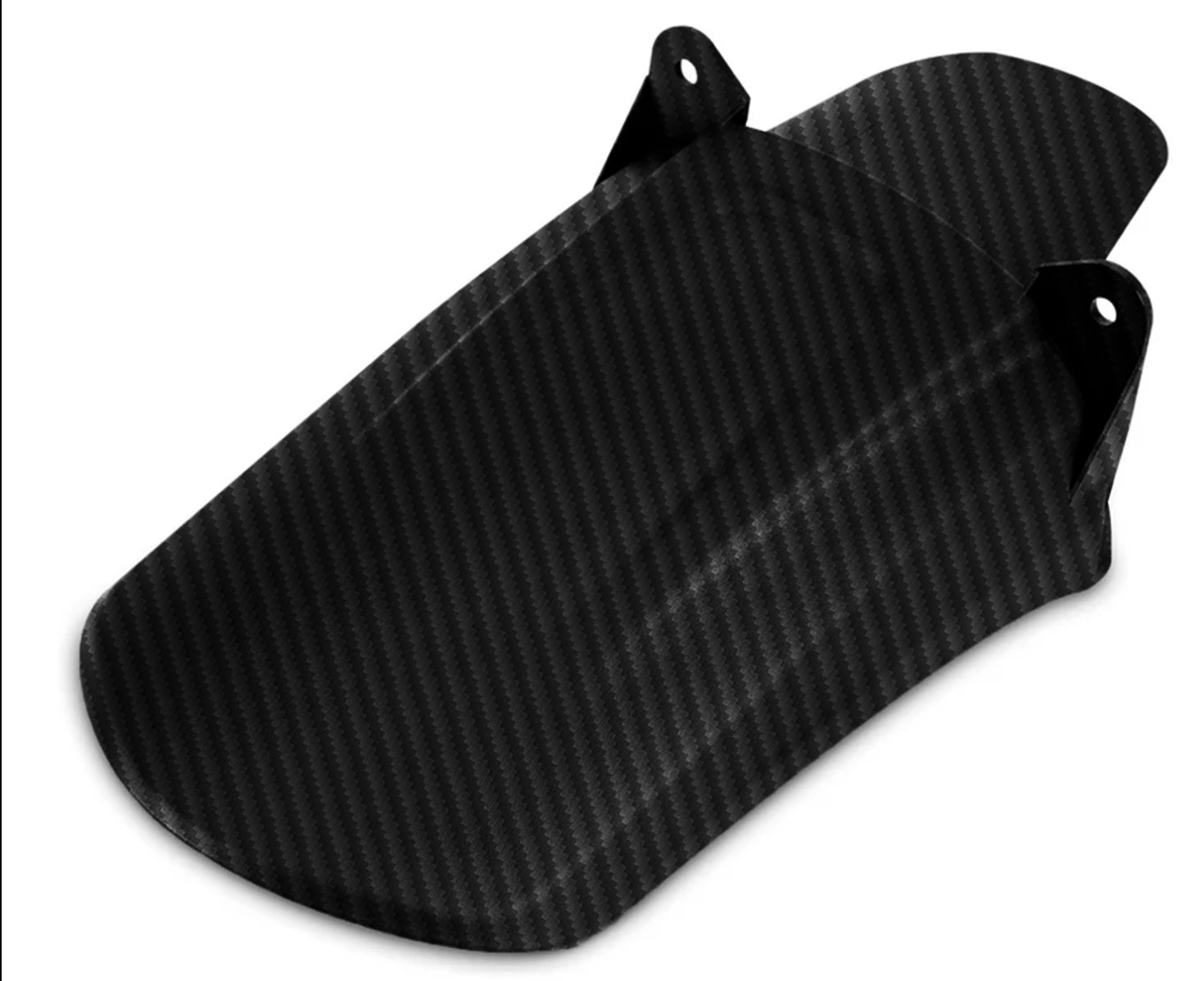

• Two finishes: Plain Black Plastic (classic, minimal) or Carbon-Style Finish (carbon-fiber appearance, premium look)
• Made from tough plastic — carbon-style pattern looks like carbon fiber, but isn't real carbon fiber
• Blocks dirt from reaching the suspension spring

Installation Steps

• Preparation: Place the bike on a stable stand and clean the swingarm and suspension area so the mudguard sits properly

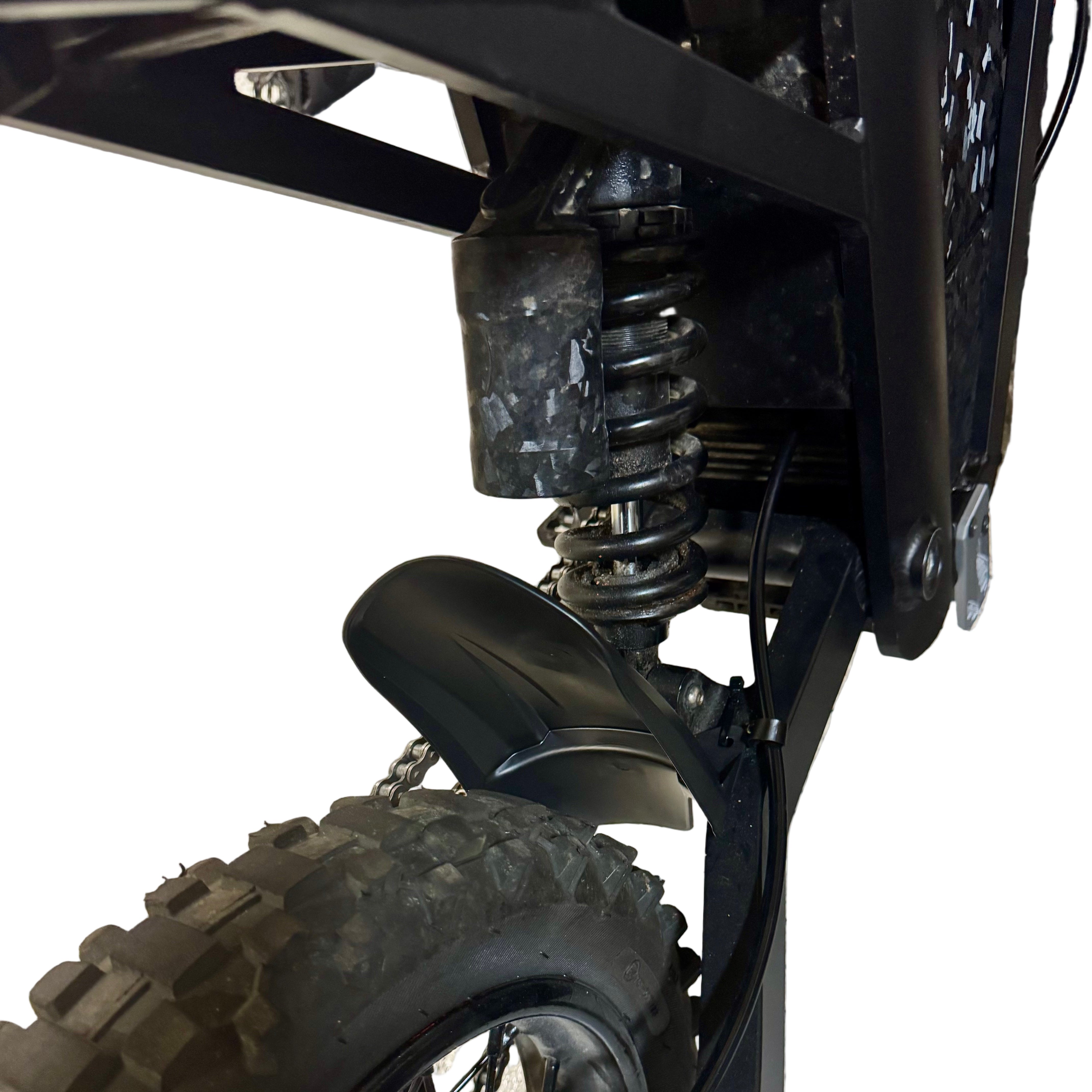

• Position: Place the mudguard under the rear suspension, above the wheel, centered and aligned to block dirt from the suspension spring
• Attach with zip ties: Secure the mounting tabs to the frame or swingarm — thread the provided zip ties through the holes in the mudguard brackets and around the frame tubing, then pull tight so it doesn't shift
• Check clearance: Make sure the mudguard doesn't touch the tire when the suspension compresses, and doesn't interfere with the brake hose, chain, or wheel movement
• Trim: Cut off the extra zip tie length for a clean finish

Fitment

• Tuttio Soleil 01 (generic rear mudguard, zip-tie fit)

Note — Important Fitment Notice: This is a generic rear mudguard that can be fitted to the Tuttio Soleil 01. It cannot be mounted with screws — installation requires zip ties secured around the bar connecting the frame.
