Pure Ultra Bee Forks

PURE Racing presents the all-new TRAXION S fork designed for Surron Ultra Bee. This is our top fork with the most advanced stanchion coating on the market. Patented technology for TiAlN Titanium surface coating, patented technology for Compression and Rebound valves.

Developed through the dedicated efforts of German engineering. Collaborating with leading suspension manufacturing specialists, PURE Racing combines aerospace-grade materials with expert craftsmanship to deliver unmatched quality and performance.

• TiAlN (Titanium Aluminium Nitride) stanchion coating offers micro-level smoothness, superior lubrication, outstanding wear and scratch resistance, and excellent thermal stability.
• Precision-honed inner cylinders with a ±0.01 mm tolerance, delivering exceptionally smooth damping and enhanced traction.

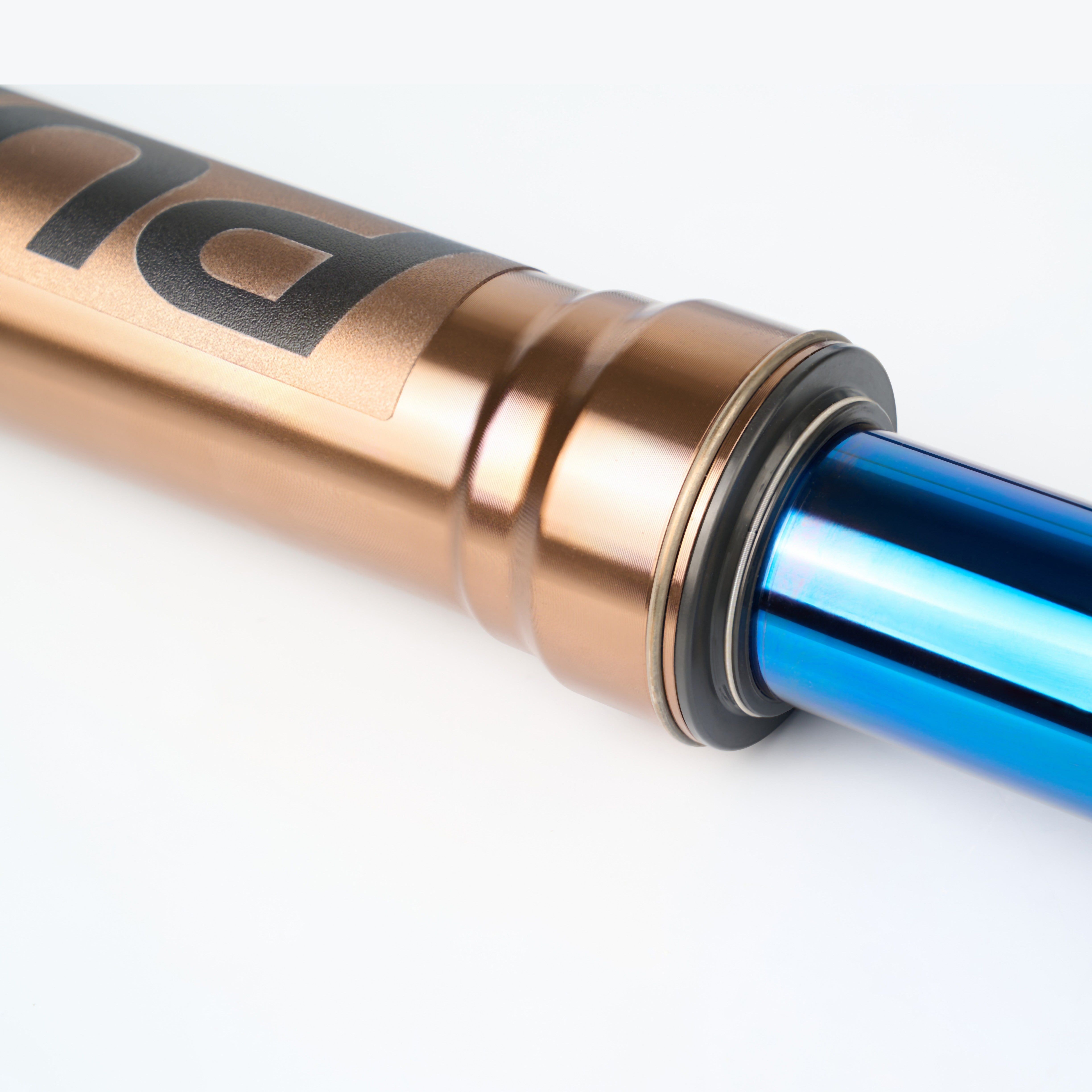

• Custom-designed oil and dust seals strike an optimal balance between sealing efficiency and low friction, ensuring consistent oil flow over extensive use.
• Advanced fluid dynamics provide a progressive, quiet, and controlled damping response.
• The link plate, refined through FEM analysis, guarantees high rigidity, fatigue durability, and weight-optimized strength.

IN THE BOX:

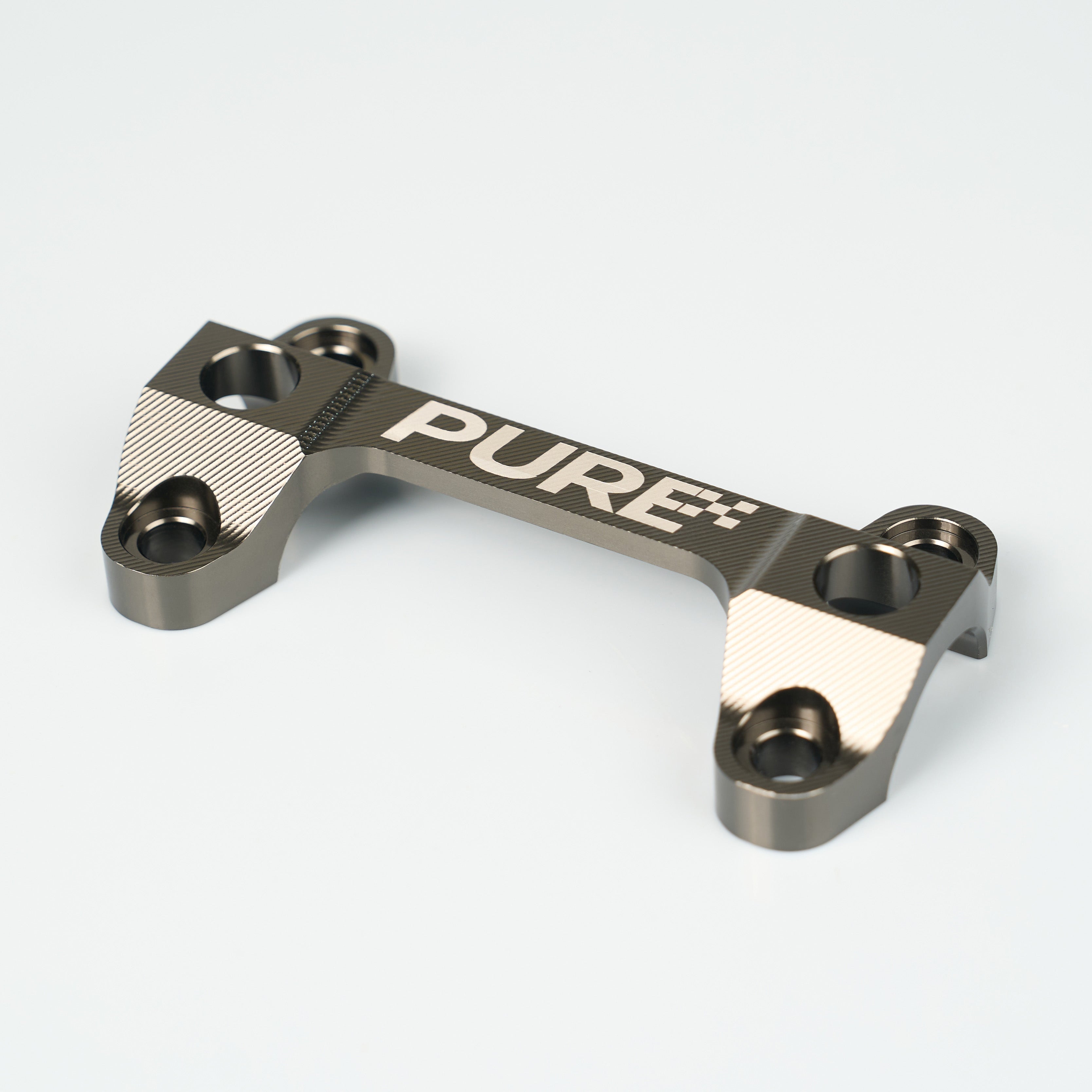

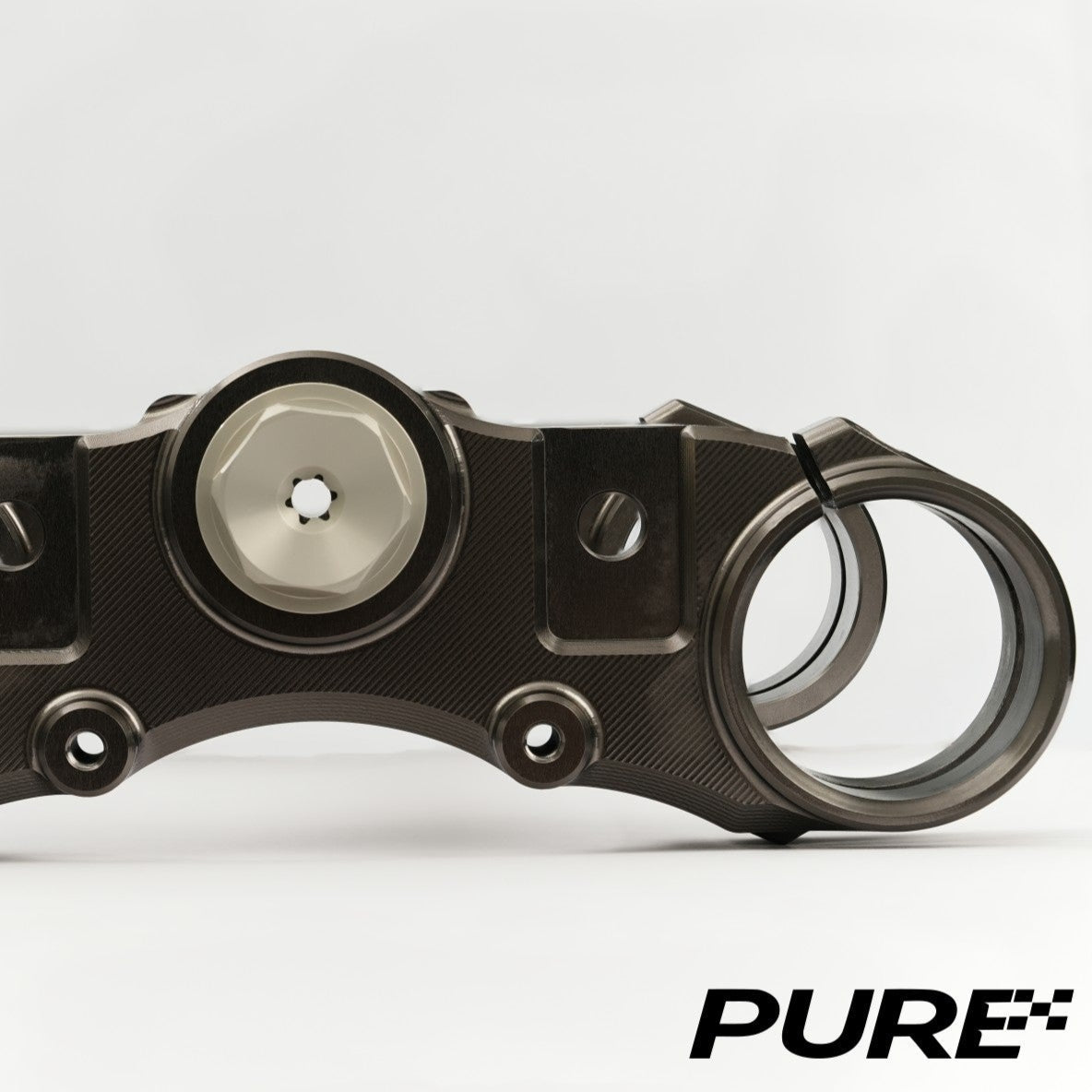

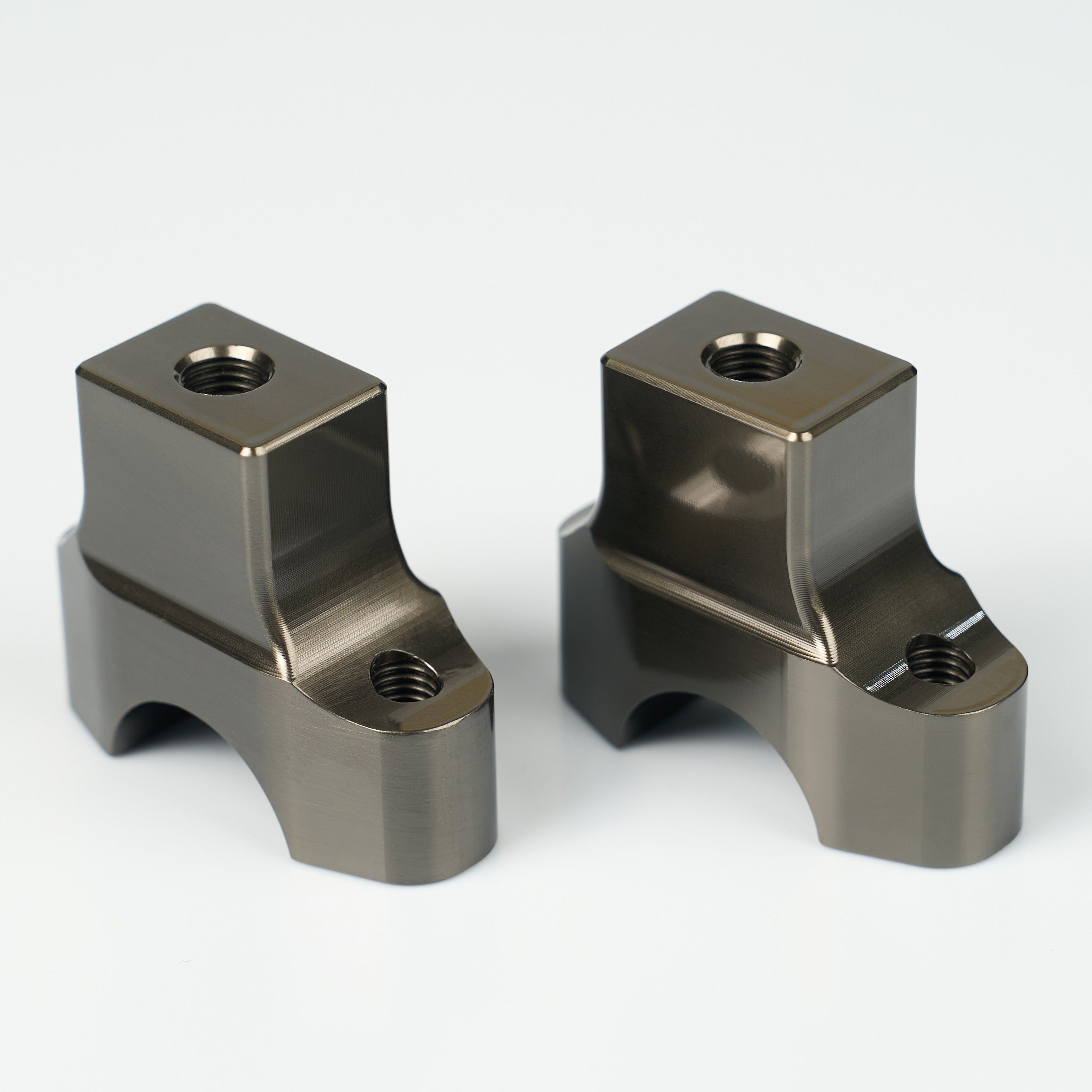

Included is Fork, CNC Crown, CNC Stem and lower bearing

Not Included, Stanchion guards, Surron ultra guards can be reused.

TECHNICAL SPECIFICATIONS:

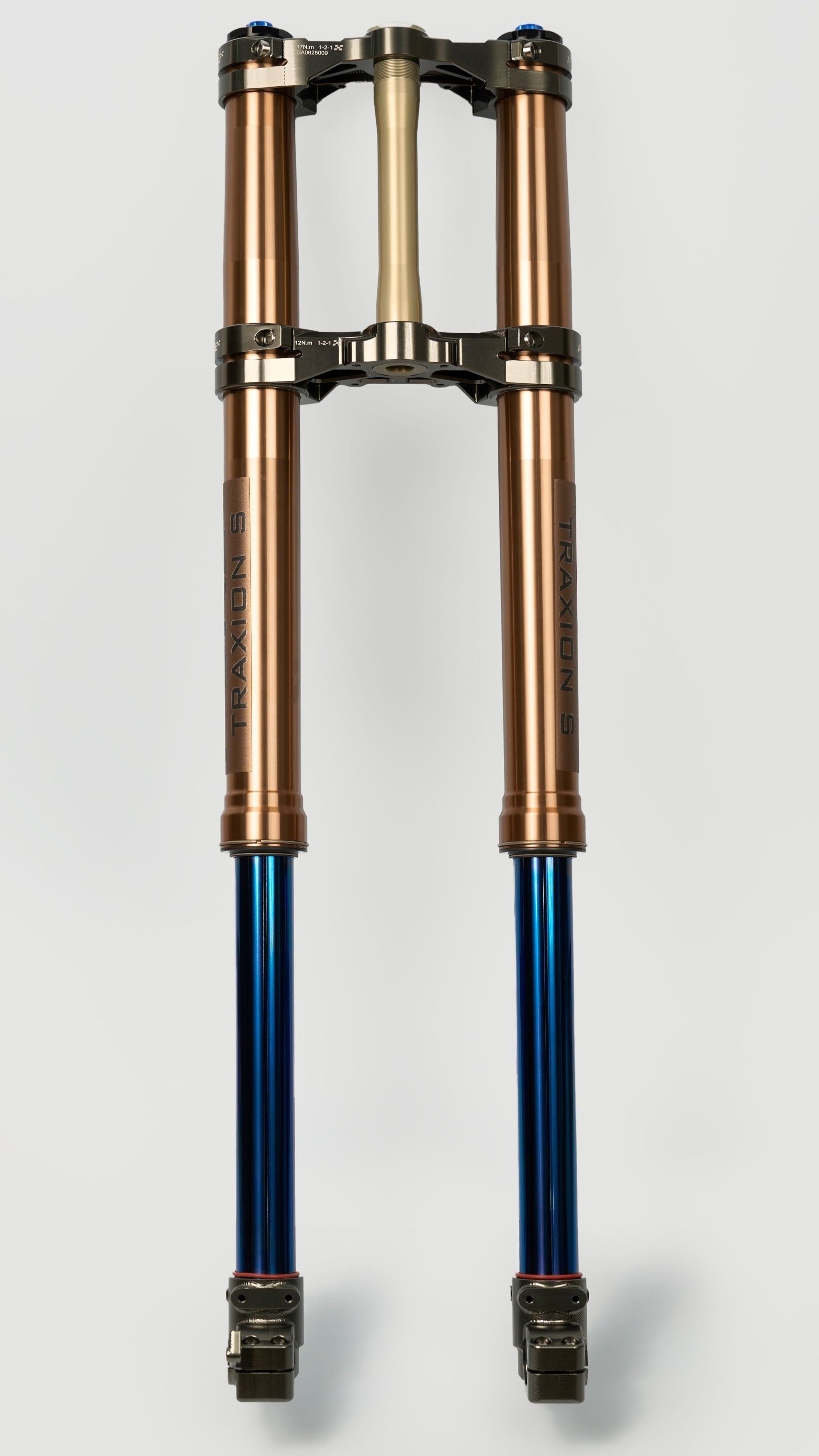

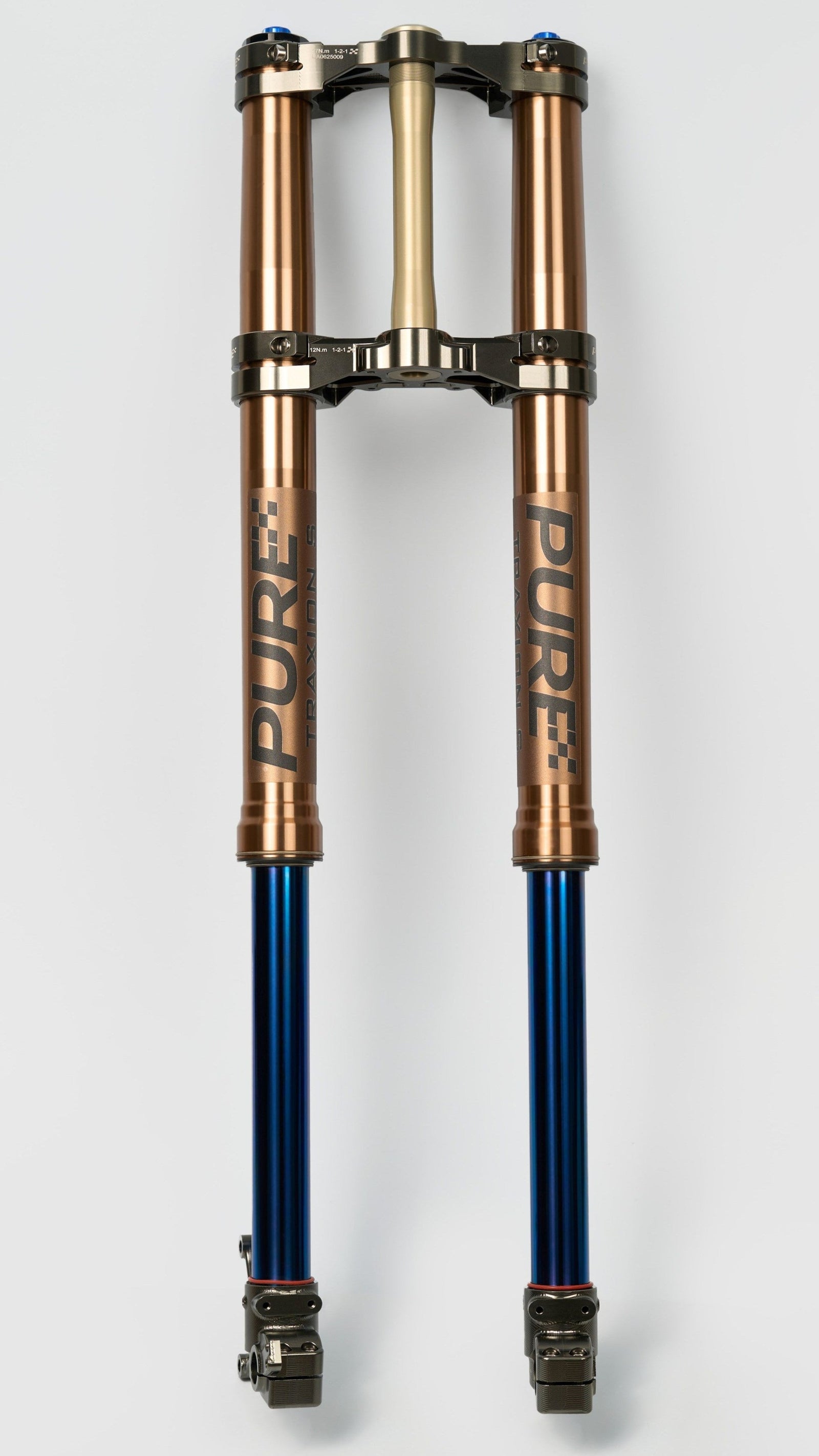

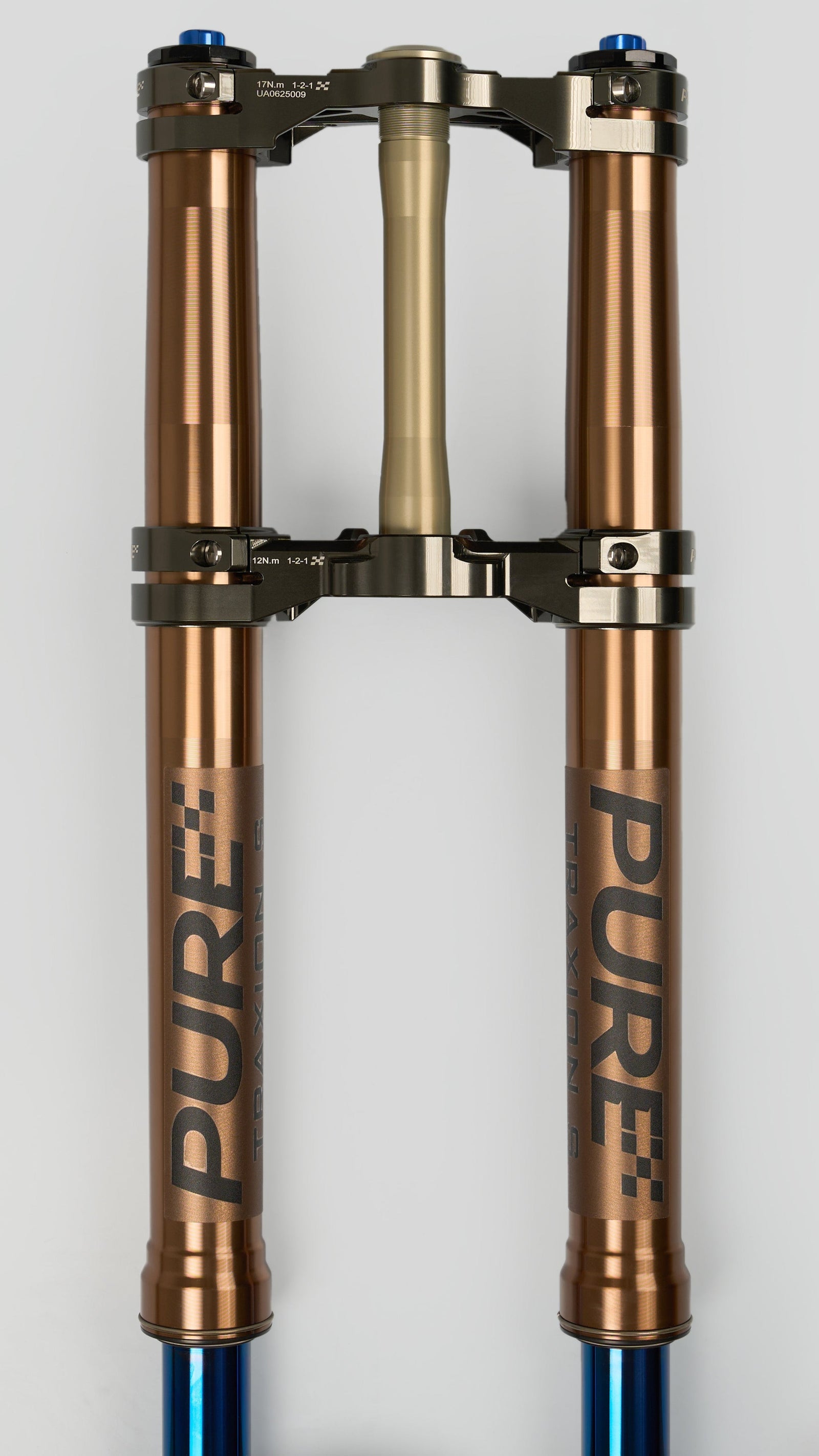

NAME: TRAXION S

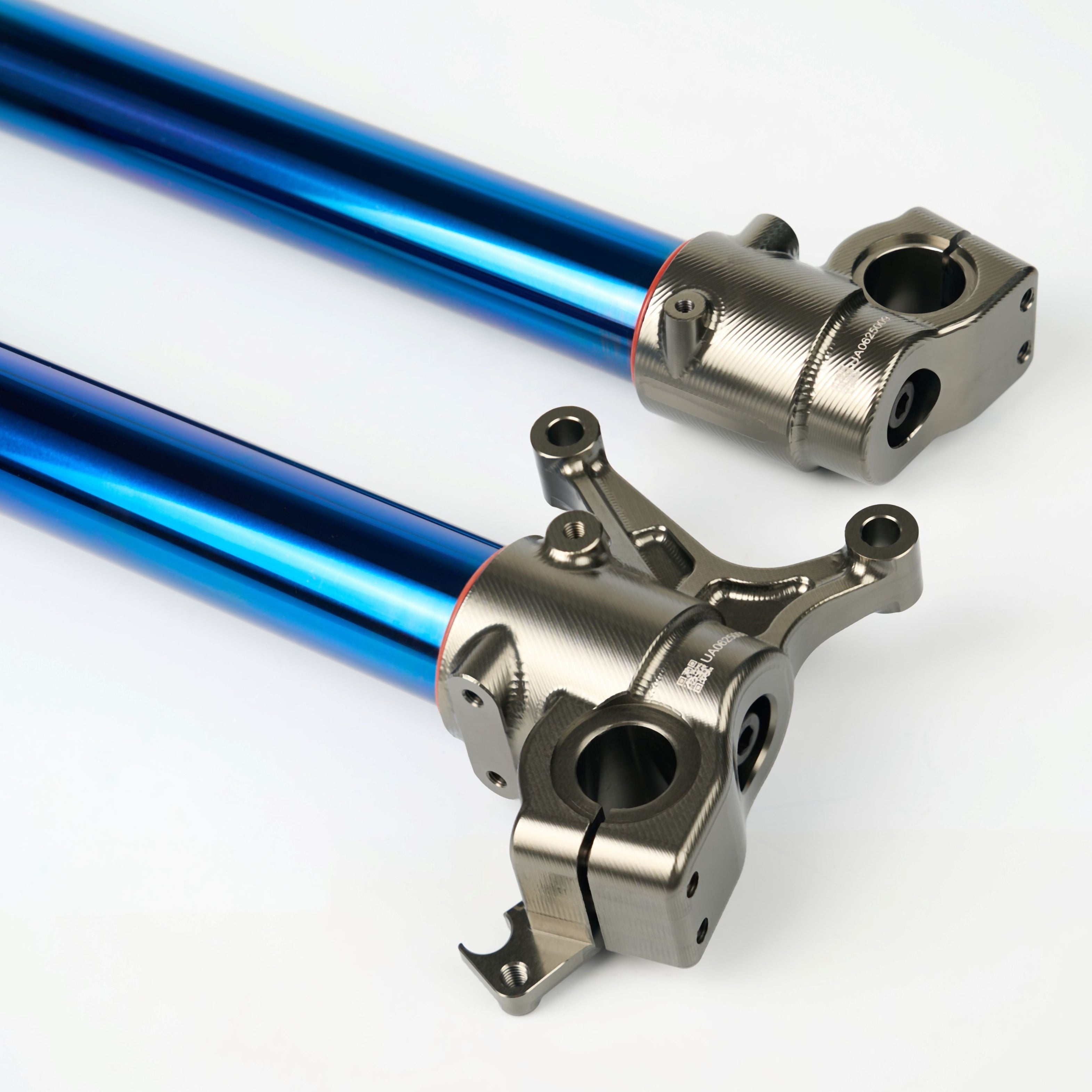

DROPOUTS: Surron Ultra Bee / Talaria omodo

TUBE DIAMETER: Inner 38mm/ Outer 50mm

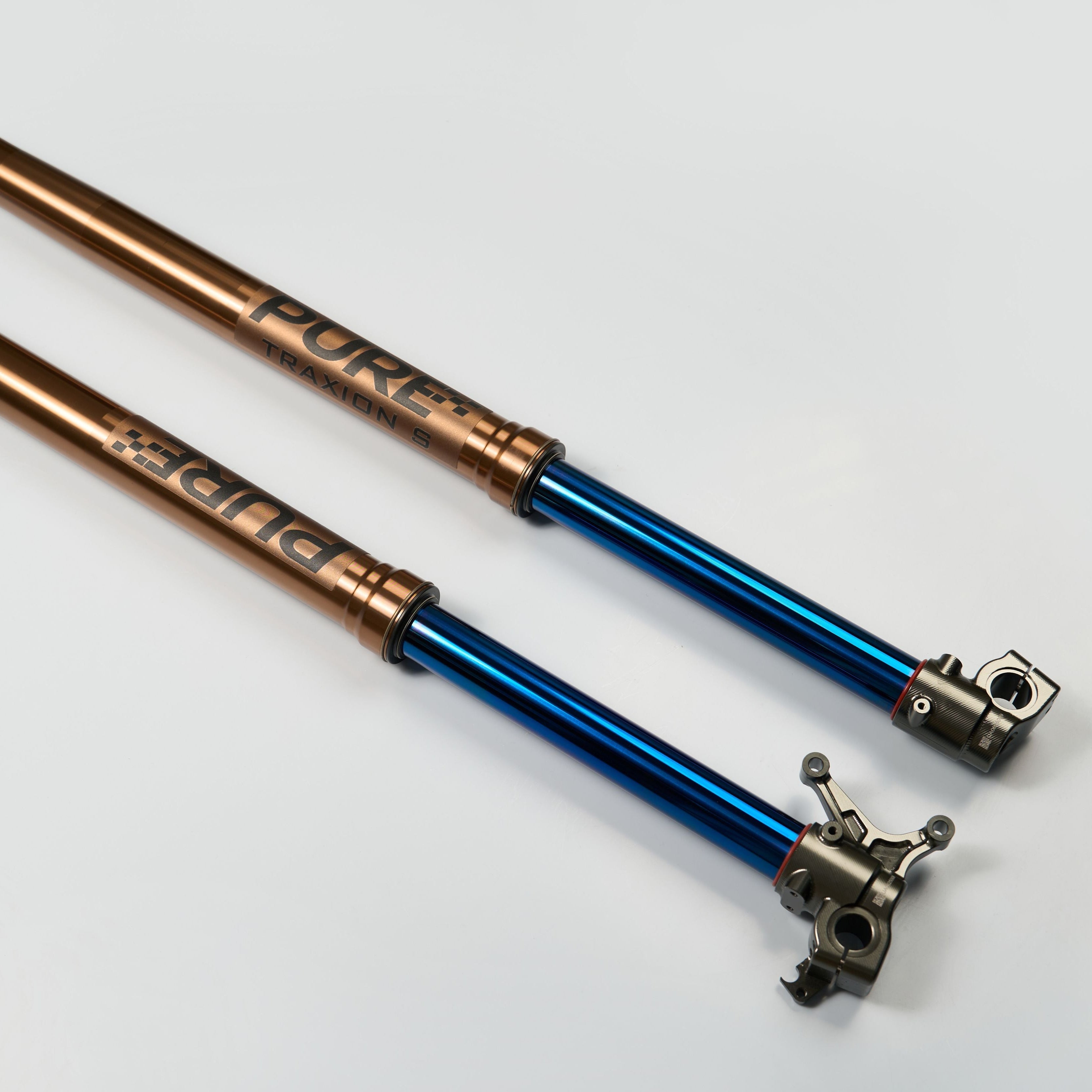

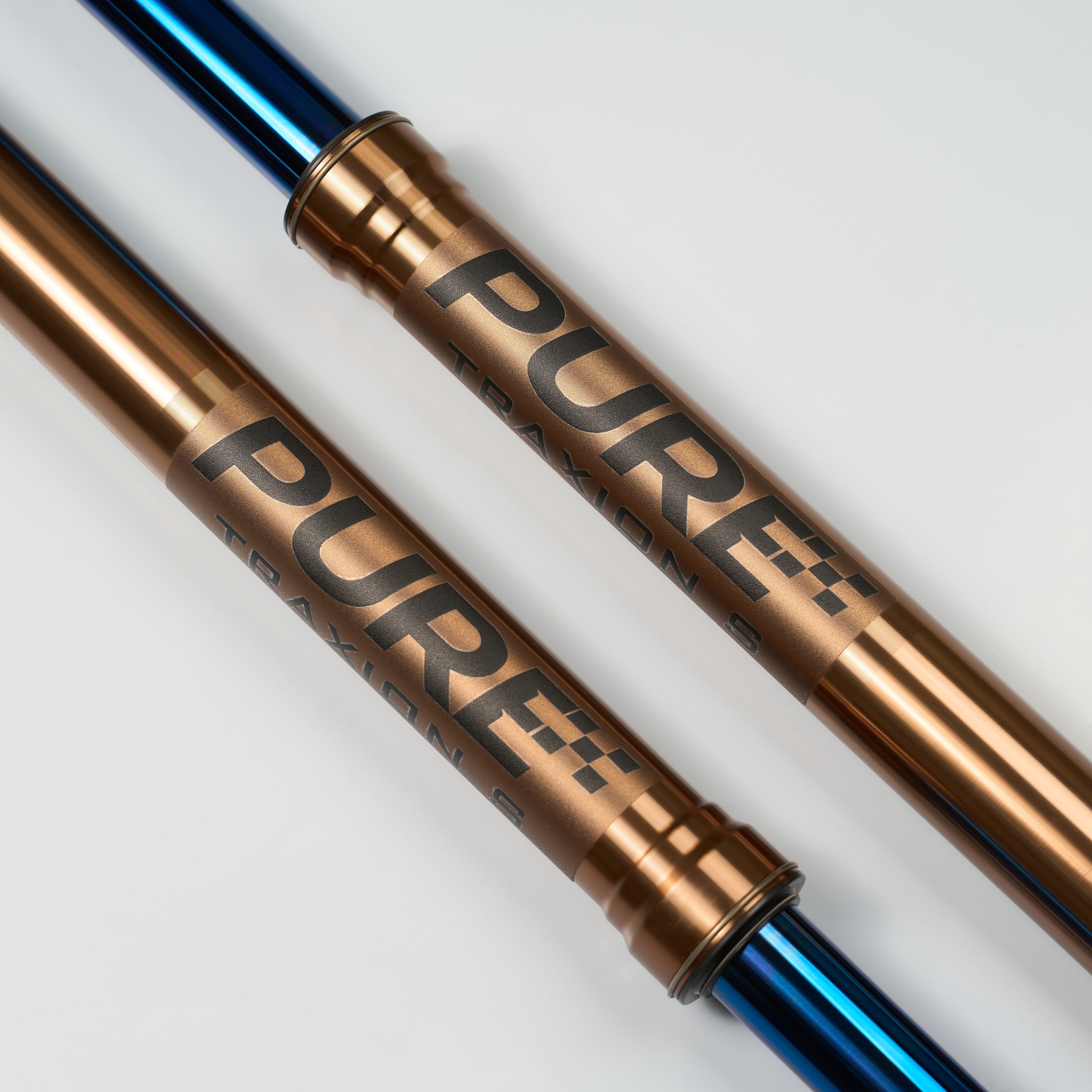

STANCHIONS:  Blue TiAlN Titanium Aluminium Nitride coated

TRAVEL: 260mm

EXTENDED LENGTH: 850mm

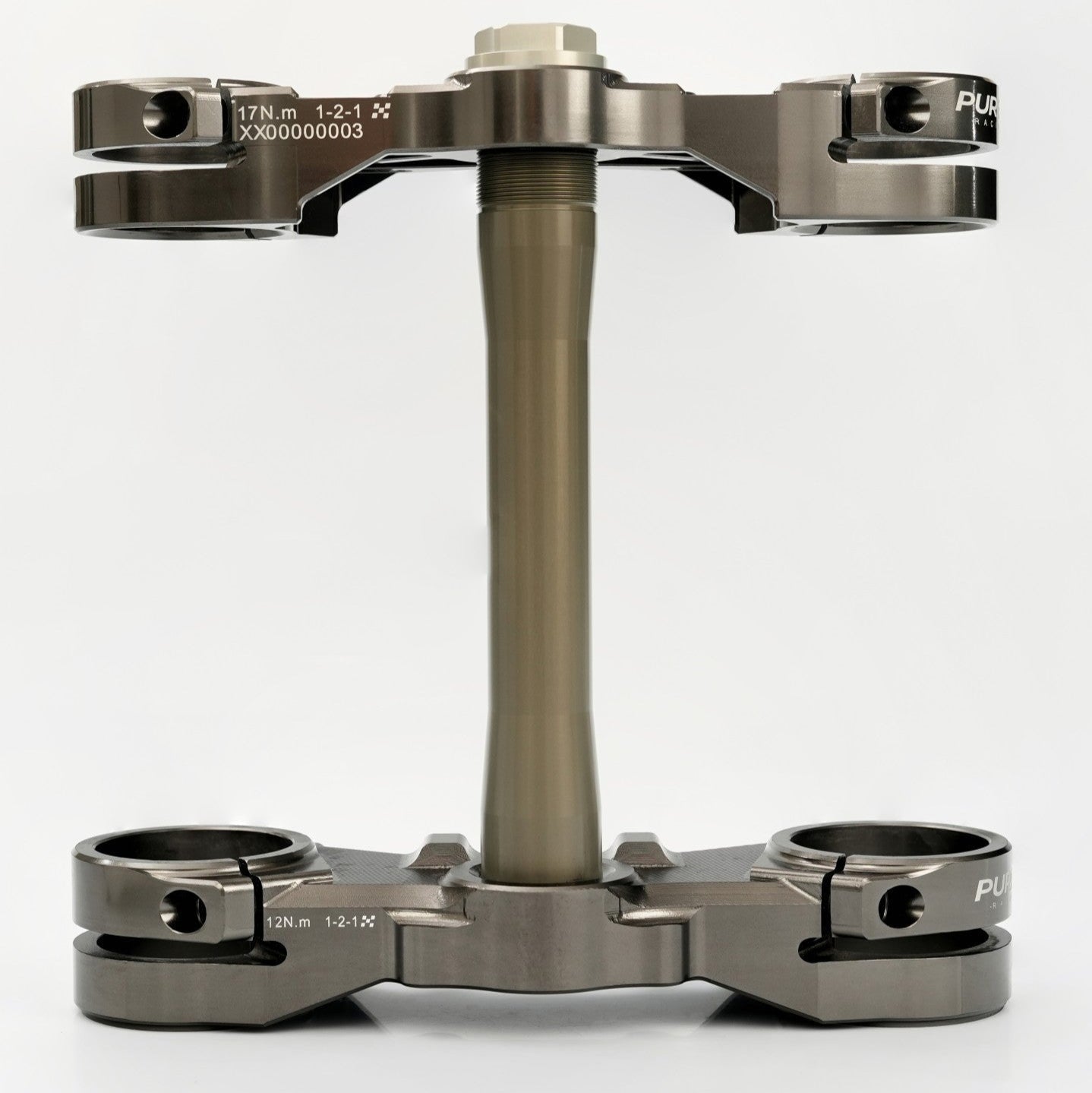

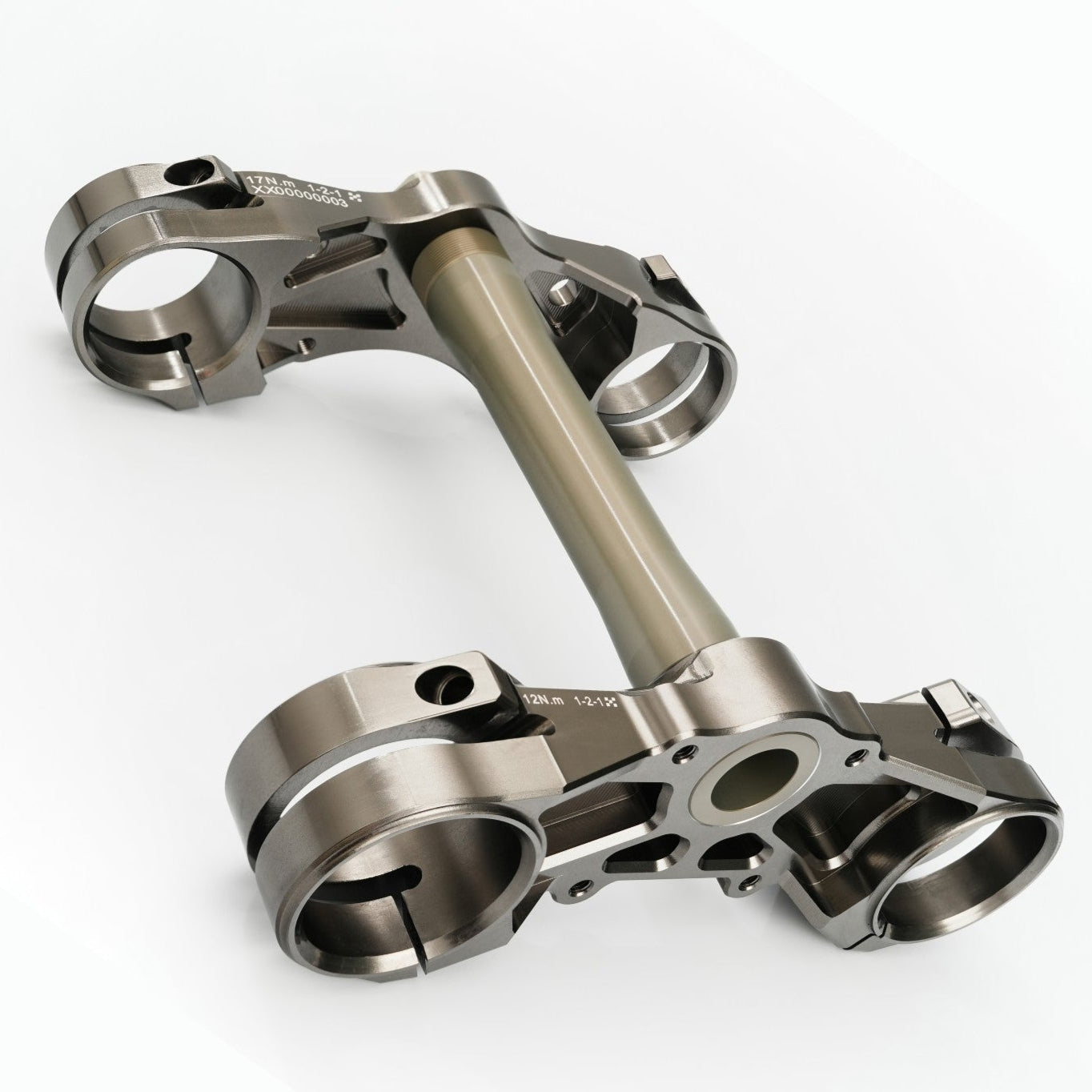

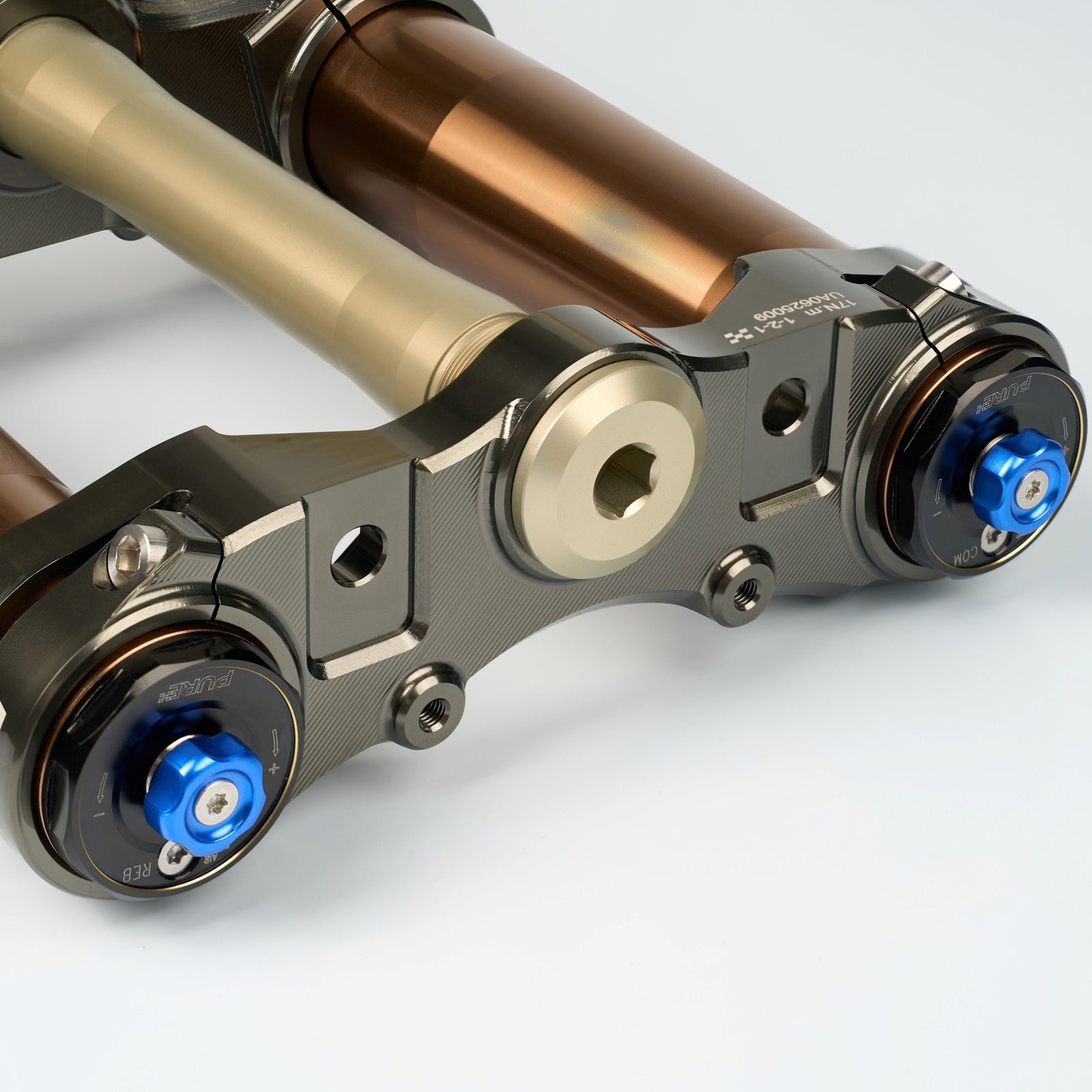

CROWN & STEM: Billet Aluminium, anodized coating

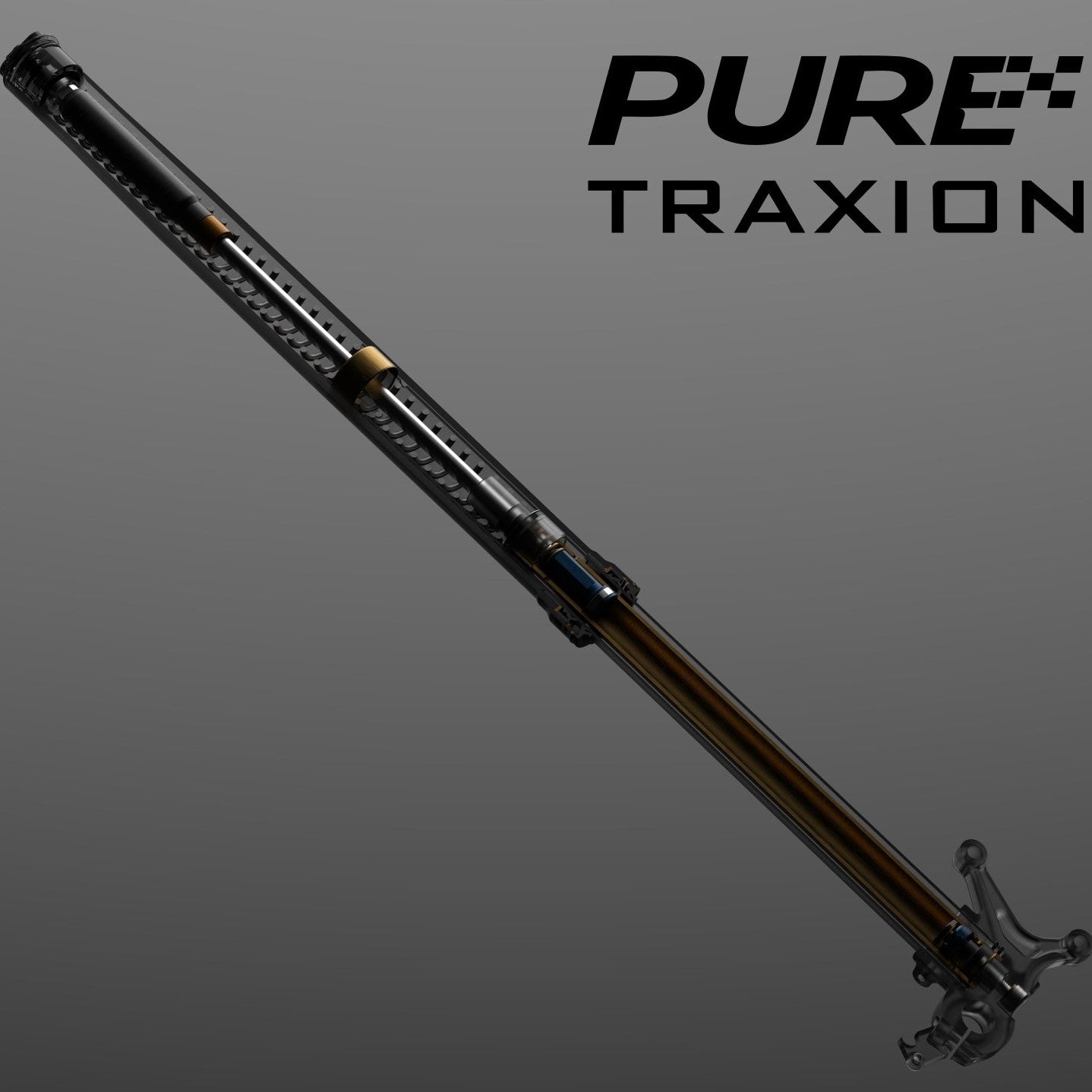

DAMPER: Dual sealed closed cartridges, dual-spring

RIDING STYLE OPTIONS: Light and Medium (TR) / Medium and Heavy (MX)

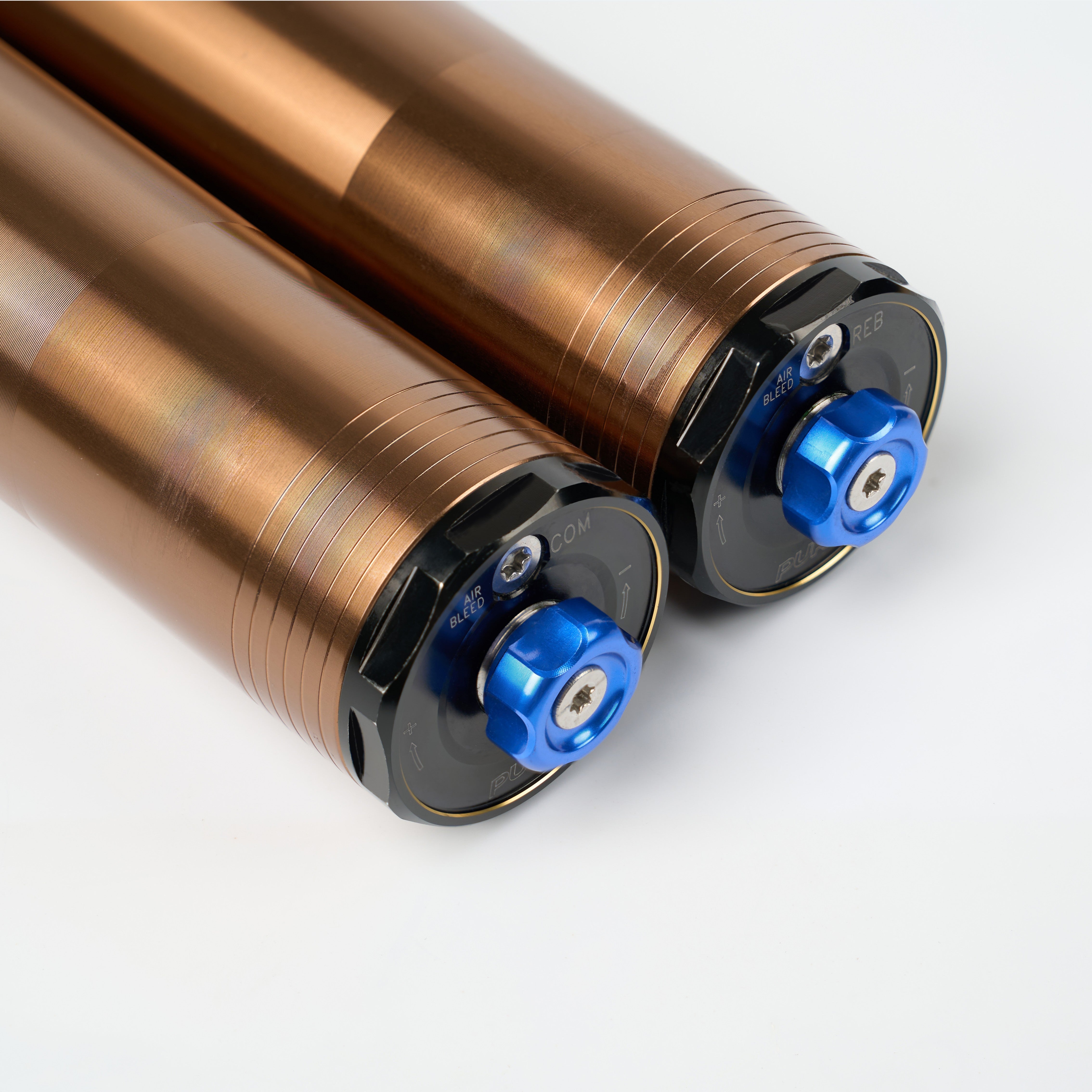

COMPRESSION DAMPING: 24-stage adjustable

REBOUND DAMPING: 24-stage adjustable
